Intelligent Toilet Pump
Smart toilet was originally used for medical and geriatric care. The intelligent toilet has many special functions such as: clean buttocks, clean lower body, warm air drying, and so on. There is no water tank in the smart toilet. So, people use a intelligent toilet pump automatically clean up it, after they use it.
So, what is a intelligent toilet pump?

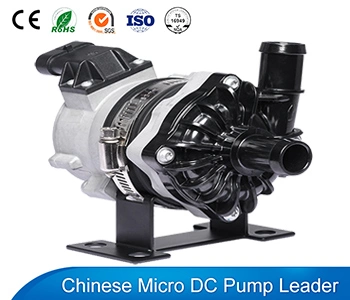

Intelligent toilet pump also named smart toilet pump, it is a small electric water pump built by a brushless DC motor. It can wash out the toilet by its high water pressure. As we all know, a normal toilet with a tank in it encounters clean up problem in low water pressure area. However, a tank-less toilet with a smart toilet booster water pump installed in it can solve this problem.
Standard Intelligent Toilet Pumps series by VOVYO:
Smart Toilet Pump VP60H
Max Head: 14.5M Max Flow: 22L/min
Smart Toilet Pump VP90A
Max Head:24~25M Max Flow:100~110L/min
Smart toilet Water Pump VP80E
Max Head:10~14M Max Flow:50~55L/min
Smart toilet pump VP90C
Head:9M Flow:120~180L/min
Inline Water Pump VP80D
Max Head: 10~12M Max Flow: 58L/min
Smart toliet Pump VP80B
Max Head: 9M Max Flow: 41L/min
Want to learn more?
Table of Contents
How to install a intelligent toilet pump?
In order to solve the water supply problem, many people will install a booster pump in the toilet. However, as a novice, they may not know how to install a smart toilet booster pump for a smart toilet. Don’t worry, VOVYO will address this question for a brief introduction.
First
Check the smart toilet pump to see whether there is any parts loose or not. And whether there is any foreign matter jam in the pump flow passage, before preparing to install the pump. So as to avoid the situation that the intelligent toilet cannot be cleaned after the installation.
Second
People should install intelligent toilet booster pump according to the vertical or horizontal mode, and make the direction of the water flow the same as the direction of the arrow on the pump body. And install it in the place where as close as possible to the water.
Third
Install a valve in front of the intelligent booster pump as much as possible. So that, it can be easily repaired in the future. In addition, a pressure gauge should be installed nearby the pump outlet , so as to check the pump to see if it working in the range of its rated rated head and flow , while by doing so, it can also prolong the service life of the intelligent toilet pump.
Fourth
The household booster pump should be installed with a check valve, when the suctioned liquid level is lower than the upper end surface of the impeller of the domestic booster pump or the shaft of the pump.
Fifth
In addition, the pipeline connection should be tight, especially the water inlet pipeline should not leak air, otherwise it will reduce the pump’s lift.
Six
Please do not operate the pump for a long time, before water flow into the intelligent booster pump chamber, otherwise it will damage the smart toilet pump.
Last but not least
In order to ensure safety use the intelligent toilet, a three-core safety socket with a grounding wire must be used.
PRODUCT CATEGORY
FEATURED PRODUCTS
| Rated Voltage | 24V |
| Max Head | 24Meters, 25Meters |
| Max Flow | 100L/Min, 110L/Min |
| Inlet Diameter | Φ38mm |
| Outlet Diameter | Φ38mm |
| Dimensions | 183x103x240mm |
| Noise | ~60dB |
| Liquid Temperature | -40~125 Celsius |
| Rated Voltage | 24V |
| Max Head | 45 Meters |
| Max Flow | 100L/Min |
| Inlet Diameter | Φ38mm |
| Outlet Diameter | Φ38mm |
| Dimensions | 175x100x170mm |
| Noise | ~60dB |
| Liquid Temperature | -40~125 Celsius |
| Rated Voltage | 24V |
| Max Head | 18M |
| Max Flow | 280L/Min |
| Inlet Diameter | Φ38mm |
| Outlet Diameter | Φ38mm |
| Dimensions | 188.1x100x176.9mm |
| Noise | ~60dB |
| Liquid Temperature | -40~125 Celsius |
| Rated Voltage | 13.5V, 24V |
| Max Head | 14M |
| Max Flow | 55L/Min |
| Inlet Diameter | Φ20mm |
| Outlet Diameter | Φ20mm |
| Dimensions | 131x112x80mm |
| Noise | ~48dB |
| Liquid Temperature | -40~125 Celsius |
| Rated Voltage | 220V |
| Max Head | 38M, 48M |
| Max Flow | 100L/Min,100L/Min |
| Inlet Diameter | Φ20mm |
| Outlet Diameter | Φ20mm |
| Dimensions | 223.4×126.0x178.0mm |
| Noise | ~50dB |
| Liquid Temperature | -30~70 Celsius |
| Rated Voltage | 6V, 12V |
| Max Head | 1.5 Meters, 3 Meters |
| Max Flow | 2.5L/Min, 4L/Min |
| Inlet Diameter | Φ8mm |
| Outlet Diameter | Φ8mm |
| Dimensions | 53.5x40x34mm |
| Noise | ~30dB |
| Liquid Temperature | -25~50 Celsius |
| Rated Voltage | 12V, 24V, 24V |
| Max Head | 8Meters, 13 Meters, 15 Meters |
| Max Flow | 10L/Min, 12L/Min, 13L/Min |
| Inlet Diameter | Φ18mm |
| Outlet Diameter | Φ9.8mm |
| Dimensions | 82.45×48.0x67.6mm |
| Noise | ~40dB |
| Liquid Temperature | -25~80 Celsius |
| Rated Voltage | 12V, 24V |
| Max Head | 3M, 8M |
| Max Flow | 8L/Min, 13L/Min |
| Inlet Diameter | Φ20mm |
| Outlet Diameter | Φ20mm |
| Dimensions | 82.3x102x46.4mm |
| Noise | ~40dB |
| Liquid Temperature | -40~110 Celsius |
| Rated Voltage | 12V, 24V, 24V |
| Max Head | 8Meters, 13 Meters, 15 Meters |
| Max Flow | 10L/Min, 12L/Min, 13L/Min |
| Inlet Diameter | Φ20mm (1/2 inch thread) |
| Outlet Diameter | Φ20mm (1/2 inch thread) |
| Dimensions | 83.4x48x69.7mm |
| Noise | ~40dB |
| Liquid Temperature | -25~80 Celsius |
| Rated Voltage | 12V, 24V |
| Max Head | 8M, 15M |
| Max Flow | 20L/Min, 25L/Min |
| Inlet Diameter | Φ20mm (1/2 inch thread) |
| Outlet Diameter | Φ20mm (1/2 inch thread) |
| Dimensions | 96.9x73x84.3mm |
| Noise | ~40dB |
| Liquid Temperature | -20~100 Celsius |
| Rated Voltage | 12V, 24V,24V,24V |
| Max Head | 11M, 20M, 25M, 32M |
| Max Flow | 20L/Min, 24L/Min, 25L/Min, 26L/Min |
| Inlet Diameter | Φ20.3mm |
| Outlet Diameter | Φ11.3mm |
| Dimensions | 90.9x60x85.85mm |
| Noise | ~40dB |
| Liquid Temperature | -25~80 Celsius |
