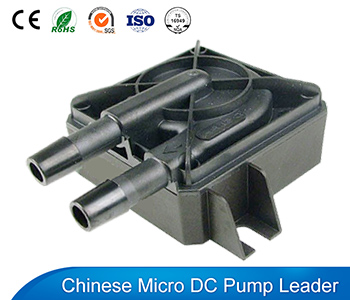

PC Water Cooling Pump
PC water cooling pump also named pc water pump, it usually refers to a centrifugal pump that use centrifugal force generated by the rotation of it’s impeller to circulate the water and cool the CPU. Therefore, you can also call it cpu water cooling pump, cpu water pump. The computer water pump is a quiet water pump mainly composed of control circuit, pump chamber, rotor, pump cover, and pump casing. It has characteristics of high stability, long life and low noise etc.
As we all know, CPU generates a lot of heat during work. The “electron migration phenomenon” will destroy the chip internal organization of the CPU. And cause permanent damage to the CPU, if the heat cannot be dissipated in time. Therefore, the computer needs to dissipate heat. Common computer cooling method includes air-cooled, and water-cooled, oil cooling, liquid nitrogen etc. Among of which water circulation heat dissipation by using a PC water cooling pump is the main form of water-cooled.
Standard PC Water Cooling Pumps series by VOVYO:
Computer Water Cooling Pump VP40P
Computer Water Cooling Pump VP40P is a small ultra quiet water pump, it’s noise less than 23dB.
Head:1.2~1.7M Flow:4.5/min Noise≤23dB
PC Cooling Pump VP60D
PC Cooling Pump DP6038 is a small quiet water pump. It is made by a bldc motor with lower noise less than 25dB.
Head: 2.4M Flow: 6L/min Noise≤ 24dB

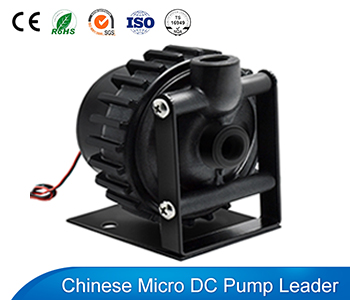

Computer Water Pump VP60E
Computer Water Pump VP60E is a quiet water pump, made by PPE and usually used for computer cooling.
Head:1.2~1.7M Flow:4.5/min Noise≤23dB
CPU Water Cooling Pump VP60R
CPU Water Cooling Pump VP60R is built by PPE material. It is commonly used for PC cooling, hot mattress cooling, etc.
Head: 2.4M Flow: 6.5L/min Noise≤28dB

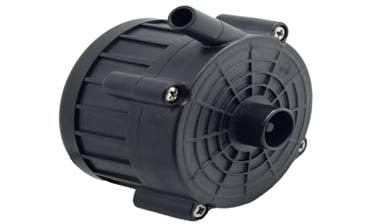

Ultra Quiet Water Pump VP70A
Ultra Quiet Water Pump VP70A is a 12v dc pump. We widely use it in hot water mattress, small boiler, CPU cooling etc.
Max Head: 2M Max Flow: 9L/min Noise≤25dB
Super Silent Water Pump VP60C
Super Silent Water Pump VP60C is a quiet Water Pump. It is driven by a bldc motor, with work noise lower than 23dB.
Max Head:1.5M Max Flow:7L/min Noise≤23dB

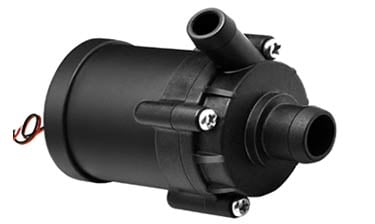

Silent Water Pump For Home VP35D
Silent Water Pump For Home VP35D is a small quiet water pump that people widely use it in plumbing mattress, floor heating etc.
Head:1.2M Max Flow:4.5L/min Noise≤23dB
Want to learn more?
Table of Contents
How to Choose a PC Water Cooling Pump?
People should take below lists performance into consideration when choose a pc water pump for their PC water-cooled system.
1. Stability
As a small circulation water pump, computer water pump is the heart of the computer water cooling system. Its stability determines whether the water cooling system can run normally or not. Congratulations, if the water pump damaged when runs, your hardware like boiling water soup , you can boil the eggs for breakfast 10 minutes later. Therefore, the stability of the pump is the most important to a pc water pump.
2. Life span
Generally speaking, the life span for a cpu cooler pump should be more than 15,000 hours in general market. Since pump is an electronic product, there will always be aging phenomenon. It will cost a lot of money if it’s life span is too short, which is not worth the loss for a water-cooled player. Here, suggest you choose a quiet brushless dc pump as a computer water pump serve for your computer water cooling system, since a pump driven by a brushless dc pump motor usually with life span more than 20,000 hours.
3. PC water pump Water Head
The water head refers to how height the pump can lift the water. The waterways in the water cooling system are not all straight lines, there are other angles. These angles brings certain resistance for the water flow. So, water pressure loses happens when the water flows to these angles. It will cause the water unable to flow if the pump’s head is too low. In other words, like a car climbs the slope, it will make the car squat if the throttle is not enough. So the water head is a key performance requirement in the water cooling system. In the conventional computer water cooling system, the requirements for the water head of a PC cooling water pump are between 2 meters and 6 meters.
4. Water Flow
Water flow refers to the total amount of water delivered by the PC water cooling pump in a unit of time. The general statement is how many liters of water a pump can transport in an hour. The water in the water pipe will not be able to fully occupy the inner diameter of the entire water pipe,if the flow rate is insufficient. In this case, the liquid that can supply the main part such as the cold head is insufficient, and the heat of the CPU cannot be quickly taken away. Not to mention it can cool the CPU and the graphics card. So,the flow rate requirement in a conventional PC pump water cooling system, should be within the range of 300L/hour~1000L/hour.
5. Noise value
It is better to use a wind-cooled rather than a water-cooled if the latter cool way is not so quiet. Work noise is another important parameter for a PC water cooling pump. We should take noise into consideration when use water-cooled. Generally speaking, it is a a quiet water pump if its work noise is below 25dB. And it is very hard for people to hear the pump work noise if he stay half a meter away from the computer.
What Matters Need Attention When Using a PC Water Cooling Pump?
As a core function component, PC water cooling pump plays important rule in the computer water cooling system. Please pay attention to below several aspects when using the PC cooling pump. So as to ensure operate the pump normally.
1. First
It’d better to connect the pc water pump to the computer motherboard, if the cpu cooling water pump power supply interface is the small 4 pins. This is to avoid the fan can’t be detected by the motherboard and lead it unable to be booted . You need to turn off the fan detection in the BIOS setting to boot the computer. As it is cannot be plugged into the motherboard to supply, if the computer water cooling pump power supply interface is not small 4 pins.
2. Second
The computer water pump is a centrifugal pump and cannot be idling operated. As it will cause the pump to be damaged. The seal ring, shaft seal, balance plate will wear quickly if there is no liquid in the cpu water pump chamber. And the temperature of the pump motor will rise sharply at the same time. Idling will cause a momentary voltage overload which is harmful to the motor. It will be burnt out, if the motor can not automatically shut down.
3. Third
The inlet of the PC water cooling pump must be below the liquid level otherwise it will not work. If the cpu water cooling pump inlet is above the liquid level, even if it suck up water for a very small height. However, this is undoubtedly a destructive test, and may damage the pump easily . Since the vacuum height of the pump is not enough to pump the water up, only the vacuum pump is available, as we all know pc water pump is a centrifugal pump not self-priming pump.
4. Last but not least
As we all know, the high-powered pump brings more higher performance, however, it will also generate and discharge more heat into the waterway. Therefore, it not that the more higher the power of the pump brings more better performance. It is better to select a computer water cooling pump with appropriate power to meet the computer water cooling requirement. Generally speaking, PC water cooling pump with a power of less than 30W is enough competent for personal computer water cooling.
Best PC Water Cooling Pump For Cooling Your Computer
1. VP60E PC Water Pump
VP60E pc water pump is one of the D5 computer water cooling pumps, it is an excellent dc water pump. It can be considered for your computer water pump DIY project, or your company’s pc water cooling system designed for mass production. This cpu water pump has a capacity of 660L per hour and a head of 3.7m. It is widely used in computer water-cooling applications and is very suitable for complex water-cooled waterway systems.
One of the main features of the pump is that the flow of the pump can be controlled by the speed adjustment of the pump motor. The maximum flow rate of the pump is 11L/min, which is fully qualified for water cooling for most computer water cooling systems. VP60E pump is conventionally equipped with speed regulation.Like other conventional D5 water pump, VP60E pump also has 5 manual gears, the maximum speed is about 4500 rpm, the voltage customized within 12V-24V, the head is 3.7M, and the flow is 660L/H.
When Should You Use VP60E PC Water Pump?
1. A complex Water-Cooled Waterway System
In short, a complex water-cooled waterway system is a water-cooling system with two cold heads + three cold rows or more in one system, which requires relatively high pump parameters.
7. Protection function
If the computer case is too small, such as MATX case or ITX case, it is difficult to support the use of VP60E pump. Since, in addition to the hardware, there are also occupied parts such as the cold drain box, so there is very little space for the water pump. Therefore, before choosing a water pump, you should first check whether the chassis is large enough! For a larger water cooling system, you can consider connecting dual VP60E pc liquid cooling pump (D5 pumps) in series or in parallel.
Things We Liked
1. Flow Control
VP60E water cooling pump for pc allows you to control the water flow through an adjustable knob. Its flow is easy to adjust through the 5-speed knob. You can also choose to use PWM pulse signal. The mode is similar to the 5-speed speed regulation, but it is more convenient because it can be controlled by desktop software. For 5-speed speed regulation, you need to find the bottom of the cpu water cooling pump and use a small Phillips screwdriver to go, poke adjustment.
2. Silent
The noise value of the pc water pump is very low. Generally, in the default pipeline, the noise can be achieved within 10 dB at 2- speed! This is a very low value, it is less sound than whispering between people. If you want to hear the noise, please put your ear to the pump and listen carefully, otherwise you won’t hear it!
3. Performance
The parameters of VP60E represent its excellent performance. In general water cooling systems, the required head is usually 3-6 meters, and the flow rate needs to be between 500L/H and 1000L/H.
4. Application
This pc silent water pump is used for application that requires low working noise, also it is an ideal choice for large-chassis computer water-cooling system applications.
Things We Didn’t Like
Large Size, Not Easy to Install
The performance of the VP60E pump is very good. We can hardly find the shortcomings of the pump, except its large size, large space, and inconvenient installation. VP60E has volume parameters above 60X60X60mm! In a water-cooling system, it is considered as a large-sized water-cooled component, which requires use a larger case to easily install it.
1. VP60E PC Water Pump
VP60D is a kind of DDC computer water pump. Its conventional water head is 2.7M, water flow is 6L/min, the maximum speed is 5000 rpm, and the voltage is 12V, is one of the best pc water pump.
VP60D is very suitable for those who are looking for small computer cooling pumps for DIY projects and those who have small requirements for flow performance. The pump has a maximum flow rate of 360 liters per hour, which can lift the water flow to a height of 9 feet. The pump has the characteristics of ultra-quiet operation, and the high noise of the water pump will not affect the user to concentrate on using the computer. It can provide reliable cooling services for a long time. In addition, the power consumption of the water pump is particularly low, which can save users a lot of electricity bills and reduce the cost of use.
When should you use VP60D PC Water Pump for Your Computer?
1. Simple System Waterway
VP60D pc water cooling pump usually used for simple system waterway, however, its performance parameters are also competent for the application that the water cooling system is the same scale as D5 pwm pump.
2. Small Computer Case
The computer ITX case, which requires extremely high space, is even more important. And when combined with the extreme small water tank, it can even meet the space requirements of 60X60X120, which is very suitable. If the MATX chassis is combined with the extreme complex water cooling or the complex water tank of the super large chassis, and the player likes the VP60D type water pump. We can consider double pumps or more pumps in series or parallel to Improve the overall performance parameters of the pump, if the performance of a pump is not sufficient. In other words, it is similar to the SLI or CF function requirements of the graphics card.
When the performance of the water pump is not enough to provide sufficient head and flow, it will cause less water flow in hardware such as CPU graphics card and slower flow speed, which will cause the hardware temperature to remain at a higher level. Therefore, after confirming by yourself or recommending water cooling by the merchant, you must check whether the performance parameters of the water pump are in line with the current water cooling system.
Things We Liked
1. Small Size
VP60D pc water cooling pump has a small size. Under normal conditions, its volume is 60*60*60, which belongs to a square pump body. It looks very MINI, and many DIY people like this type of pump very much.
2. High Performance
VP60 can be equipped with PWM or fixed speed, that is, without speed regulation! Its max water head can reach 6M. Or the parameters can be adjusted to more exaggerated, even up to 10,000 rpm VP60D by changing the PCB controller circuit.
3. Customizable Performance
VP60D has much more playability than D5 PWM pump. VOVYO can improve the performance parameters of the pump by modifying the parameters of the water pump cover, so as to meet the different needs of users.
4. Removable
The VP60D computer cooling water pump is easy to disassemble and clean, and easy to maintain. Compared with similar products, with such advantages, it will ensure that this pc water cooling pump with a more longer service lifespan.
This pump is used for application that requires low working noise, also it is an ideal choice for large-chassis computer water-cooling system applications.
Things We Didn’t Like
1. Its Working Noise is A Little Larger Than That of VP60E D5 Water Pump
Compared with D5 pump, VP60D has worse stability and relatively louder noise, mainly because of the different rotor and inner cavity design between the two pumps.
2. Relatively Small Flow
As a kind of D5 computer cooling water pump, VP60E pump is a large flow type design, while as a kind of DDC computer water pump VP60D with a large head design. In other words, it’s like we pinch half of the outlet of the faucet with our fingers. Originally the flow rate was large and the water output speed was slow (just like the D5 computer water pump), then, the flow rate changes to a small flow, and the water output speed was extremely fast, and the water jet was extremely far distance! However, the sound of water flow suddenly became louder, D5 pump and VP60D pc water cooling pump also have similar principles.
