■ Overview

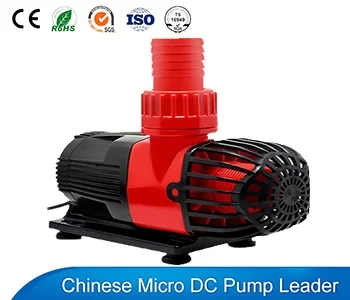

12v Aquarium Water Pump VP85A is a high quality made aquarium water pump. Driven by a efficency bldc motor, VP85A with high performance in life span, low noise, large water flow. As a small water circulation pump it not only provides water circulation for the aquarium to provide good living envarioment for fishes, but also has following effects:
- Gas exchange: One of function of the aquarium egg fraction is to aerate the aquarium. The 12v Aquarium Water Pump can spread the oxygen-enriched water from the egg fraction into the master cylinder.
- Avoid the accumulation of harmful substances in the master cylinder: Enough water flow is needed to transfer the waste generated by the master cylinder before and after being decomposed by microorganisms. And bring these materials to the bottom cylinder for physical and biochemical filtration.
- The water flow is used as a supplement to wave making. (just a supplement) Ample water flow makes the water quality and water temperature of the fish tank more stable, as well as ensure the oxygen content in the water.
12v Aquarium Water Pump Features:
Our 12v Aquarium Water Pump with flow
- Motor type: dc Brushless motor inside.
- Life time span: More than 20,000 hours life span.
- Quiet: Its working noise is low to 50dB which is good for fish to live
- Water flow: Its water flow as large as 200L/min, our VP95A can even more than 240L/min.
- Ambient temperature -25~50℃
- Working fluid temperature 0~50℃
Fish Tank Pump Application:
As a high quality made quiet water pump, the VP85A pump can use for below applications:
- Aquarium water circulation, Wave making
- Water Fountain
- Garden
- Other water circulation systems
■ Parameter

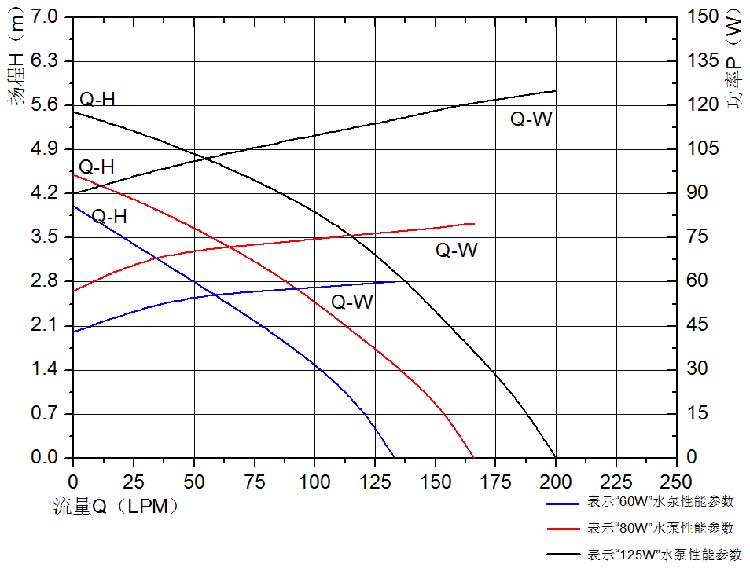

| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 24 | 12~30 | 2.5 | 3.5 | 133 | 60 | ≤50 |
| 24 | 12~30 | 3.2 | 4.0 | 166 | 80 | ≤55 |
| 24 | 12~30 | 5.3 | 5.5 | 200 | 125 | ≤55 |
■ Specifications
| 1 | Max Flow Rate | 133L/MIN, 166L/MIN, 200L/MIN |
| 2 | Max Static Lift | 3.5M, 4M, 5.5M |
| 3 | Rated Voltage | 24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | 0°-70°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | DC brushless motor |
| 9 | Ambient Temperature | -25°-50°C |
| 10 | Media | Sea water/Pure Water |
| 11 | Waterproof Class | IP68 |
| 12 | Use Place | Outdoor/Indoor |
| 13 | Working Voltage Range | 12V-30V |
| 14 | Power Consumption | 60W, 80W, 125W |
| 15 | Noise Class form 1M | <50dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | Φ34.5 |
| 19 | OD of Outlet | Φ34.5 |

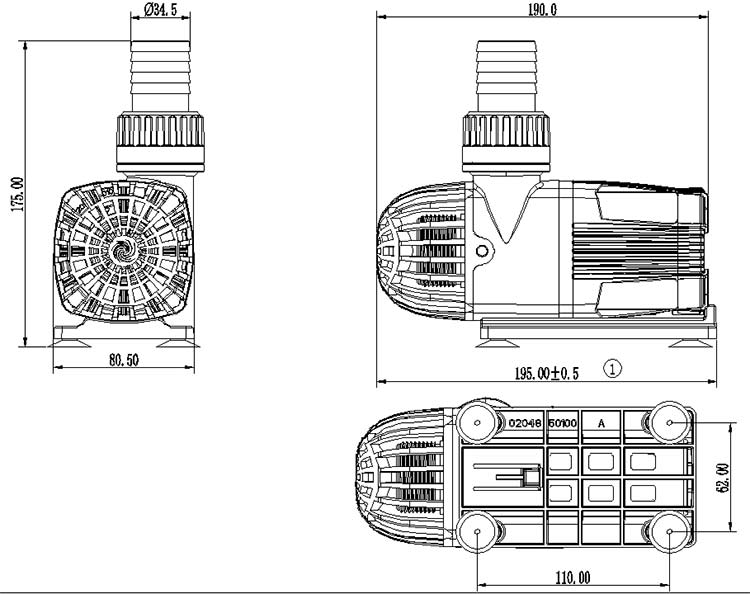

| 20 | Dimension | 190mm*80.5mm*175 mm |
| 21 | Weight | 0.6 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
