■ Overview

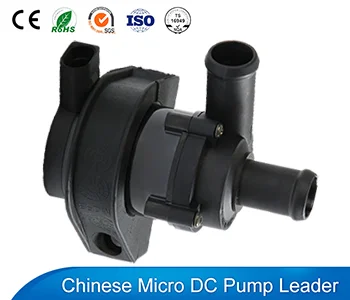

12v Electric Water Pump Motorcycle VP50N is a 12v dc water pump which build by bldc motor. It is designed as a motorcycle electric water Pump. Its operating temperature is from -40 ° C ~ 125 ° C. VP50N can provide an efficient working environment for motorcycle engine or battery cooling system. Even under extremely harsh environmental conditions.
12v Electric Water Pump Motorcycle VP50N usually used in most automotive engine cycle applications. It unique in design, high in efficiency, low in power consumption. And the long-life brushless motor technology makes it with zero lifetime maintenance and quiet performance. Moreover, as a electric coolant pump VP50N can be used for Motorcycle and automotive engine coolant cooling cycle. As well as preheating, parking heating. Or any other cycle that cannot be used with a circulating pump.
12v Electric Water Pump Motorcycle Features:
Water Pump Application:
■ Parameter

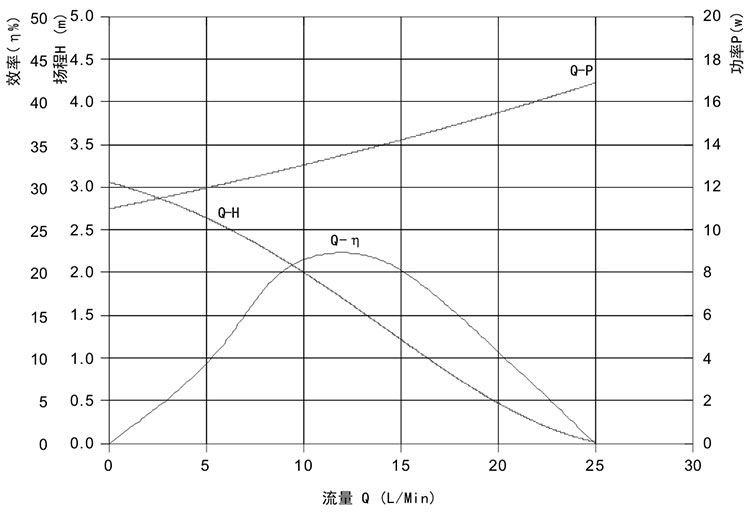

| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 12 | 8~20 | 1.4 | 3 | 25 | 17 | ≤40 |
| 24 | 12~30 | 0.7 | 3 | 25 | 17 | ≤40 |
■ Specifications
| 1 | Max Flow Rate | 25L/MIN |
| 2 | Max Static Lift | 3M |
| 3 | Rated Voltage | 12V/24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-120°C |
| 10 | Media | Antifreeze/Pure Water |
| 11 | Waterproof Class | IP65 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V,12V-30V |
| 14 | Power Consumption | 17W |
| 15 | Noise Class form 1M | 40dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 20 mm |
| 19 | OD of Outlet | 20 mm |

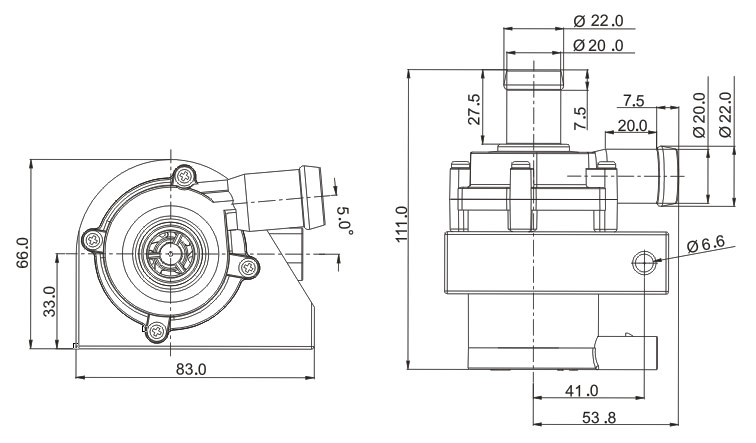

| 20 | Dimension | 110.3*84.7*48mm |
| 21 | Weight | 0.36 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
