12v Engine Coolant Pump VP80C

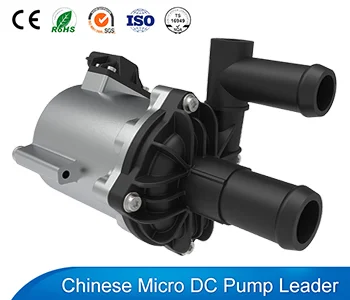

ford automotive electric water pump vp80c

12v Engine Coolant Pump VP80C is a small auto water pump which build by bldc motor. VP80C pump can be well served in vehicle cooling cycle systems.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

9M
Max Flow

2760L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    12v Engine Coolant Pump VP80C is a small electric water pump which build by brushless dc motor. It is designed a as a automotive electric water pump.It can be used in New energy vehicle auxiliary cooling cycle, Battery cooling and auxiliary heating cycle, etc. Furthermore, we also can use it as a motorcycle electric water pump in motorcycle battery cooling system. VP80C pump can be well served in vehicle cooling cycle systems as well as kitchen equipment.

    12v Engine Coolant Pump Features:

  • Driven method:Advanced Brushless dc motor driving technology.
  • Life:More than 20,000 hours life span.
  • Duty work:can sustain continuous 24 hours work.
  • Power supply :  Battery,Power supply,solar panels.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution.
  • With FG signal output function.
  • Speed control way: PWM/Manual speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Blocked protection,Locked-rotor protection,Dry-running protection.

    • Coolant Pump Application:

    12v Engine Coolant Pump is a auto parts product, it can be used for vehicels applications. Suitable for applied in auto, car, bus, and other bathroom and kitchen equipment. Mainly pump antifreeze, fresh water, and other liquids that used for pumps.

  • Car’s Warm air conditioner cycles
  • Pure electric buses motor control system hot water circulation
  • New energy vehicle auxiliary cooling cycle
  • Torque converter cooling cycle
  • Battery cooling and auxiliary heating cycle
  • Smart toilet
  • Other kitchen equipment

    • automotive electric water pump VP80C application

    ■ Specifications
    1 Max Flow Rate 46L/MIN
    2 Max Static Lift 9M
    3 Rated Voltage 13.5V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 81W/89W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 22 mm
    19 OD of Outlet 22 mm
    20 Dimension 156*127*106 mm
    21 Weight 0.9 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    13.5 8~20 6 9 46 81 ≤50
    24 12~30 3.7 9 46 89 ≤50
    ■ Curve & Dimension

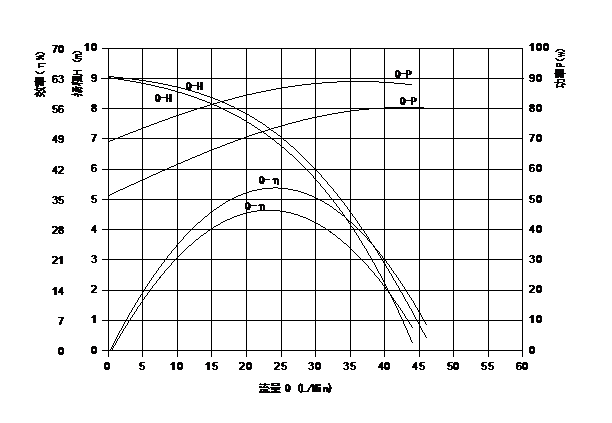

    automotive electric water pump VP80C flow

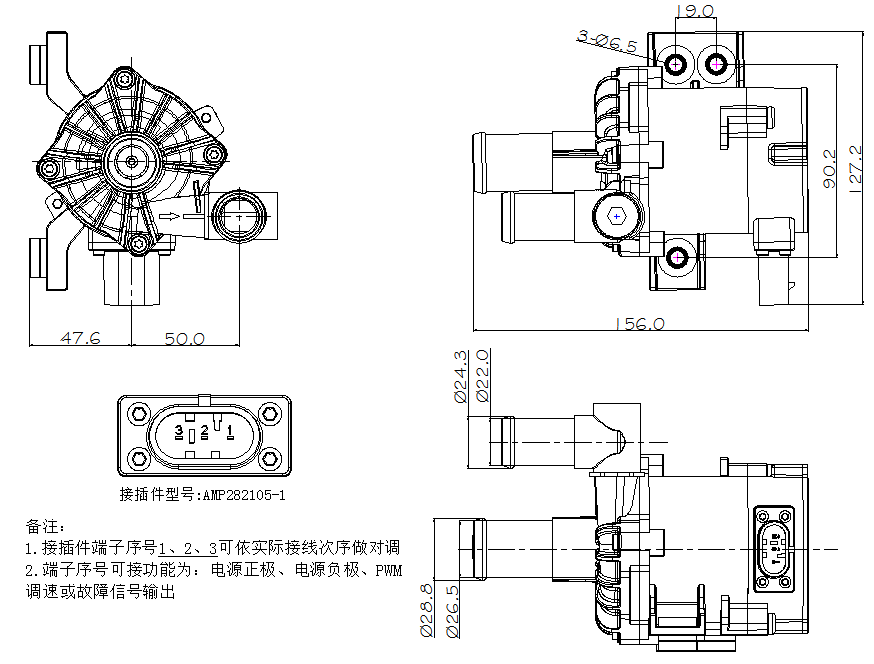

    automotive electric water pump VP80C size
