12V Inline Water Pump VP40R

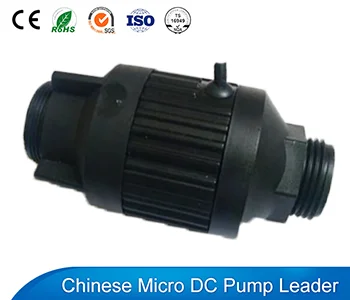

inline water pumps vp40r

12V Inline Water Pump VP40R is a high quality made 12 volt solar water heater pump. It is widely used for solar water heater and pipeline water booster etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

7M,10M
Max Flow

1140L/H,1440L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    12V Inline Water Pump VP40R is a dc brushless motor made high quality hot water booster pump. VP40R is made by PPE material that can endure high working temperature. Its working efficency is more than 60%, since it driven by a 12v BLDC Motor. It is designed for commercial application widely used for solar water circulation system, water heater and pipeline booster ,etc. And people also can used it as hot water recirculating pump in pipline water booster etc.

    12V Inline Water Pump Features:

  • Driven method: Brushless dc motor driving technology inside
  • Duty work: can sustain 24 hours continuous running. and life span is more than 20,000 hours
  • High efficiency: DC brushless motor with long life span
  • Low noise : With quiet noise lower than 40dB
  • Max working temperature: It can working with 100℃ temperature hot water.

    • 12V Pump VP40R Application:

  •  Solar water heater
  •  Pipeline booster.
  • Hot pump air conditioner
  • Air energy water heater
  • Other Water circulation

    • inline water pumps vp40r application

    ■ Specifications
    1 Max Flow Rate 19L/MIN,24L/MIN
    2 Max Static Lift 7M,10M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 25W,50W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    20 Dimension 142*71∅mm
    21 Weight 0.50 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 2 7 19 25 ≤40
    24 12~30 2.1 10 24 50 ≤45
    ■ Curve & Dimension

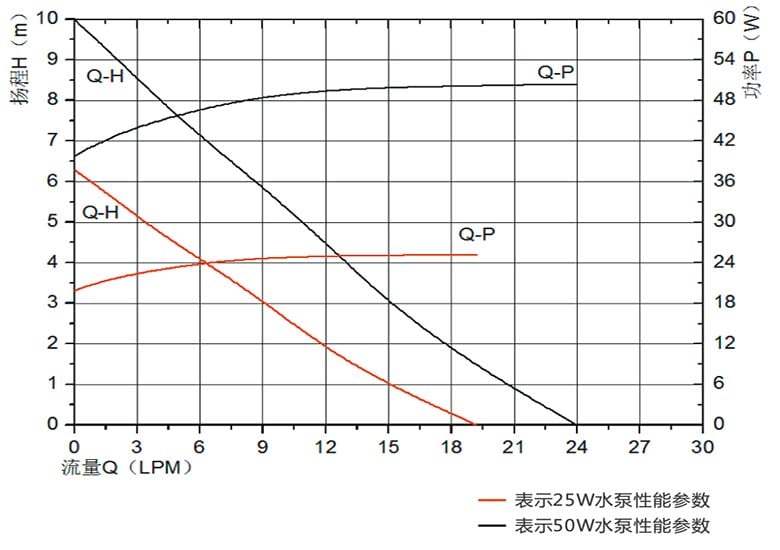

    inline water pumps p4529 flow

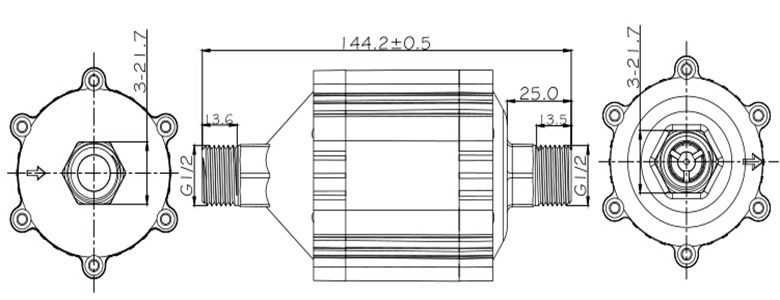

    inline water pumps p4529 size
