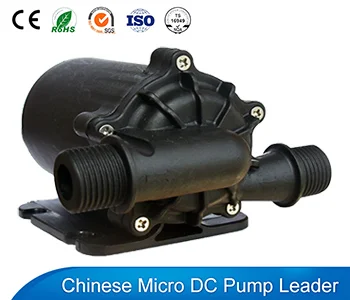

24 Volt Solar Water Pump VP50F

24 volt solar water pump vp50f

24 Volt Solar Water Pump VP50F is a high efficiency small dc submersible water pump. Widely used in water heater,air conditioner,Solar farm irrigation,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

6M,13M
Max Flow

996L/H,1500L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    24 Volt Solar Water Pump VP50F is a solar powered water pump driven by a 24v dc brushless motor. VP50F is a medium Hot Water Recirculating Pump in the range in terms of size, flow and pressure. The motor speed of VP50F pump can be adjusted by 0~5v voltage or PWM speed control signal. Moreover, VP50F also can be submerge working in water, due to its pump motor is sealed by epoxy. Competitively priced in the water circulation pump market. VP50F pump is a good choice for people to use it in the water circulation system as well as solar pumping system. Such as, hot water recirculating system, solar farm irrigation, agricultural spray, solar water heater etc.

    24 Volt Solar Water Pump Features:

  • Motor: brushless dc motor technology inside
  • Life span: more than 25,000 hours
  • Low noise: noise lower than 40dB
  • Max working temperature : can work with 100℃ fluids
  • 0~5V voltage, PWM speed adjustable

    • Solar Pump Application:

    VP50F can be widely used for below applications:

  • Out door Solar water heater
  • Solar farm irrigation
  • Agricultural spray.
  • water circulation system
  • Hot water recirculating system
    • ■ Specifications
    1 Max Flow Rate 16.6L/MIN,25L/MIN
    2 Max Static Lift 6M,13M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushles dc motor
    9 Ambient Temperature -10°-100°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 6V-14V,10V-26V
    14 Power Consumption 45.6W,84W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet Φ20mm (1/2 inch thread)
    19 OD of Outlet Φ20mm (1/2 inch thread)
    20 Dimension 114.5mm*108mm*71.6mm
    21 Weight 0.65 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 6~14 3.8 6 16.6 45.6 ≤40
    24 10~26 3.5 13 25 84 ≤40
    ■ Curve & Dimension

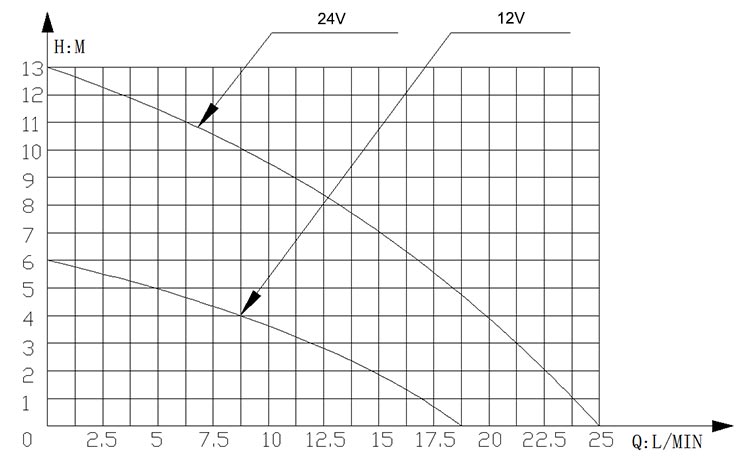

    Solar Domestic Pump VP50 flow

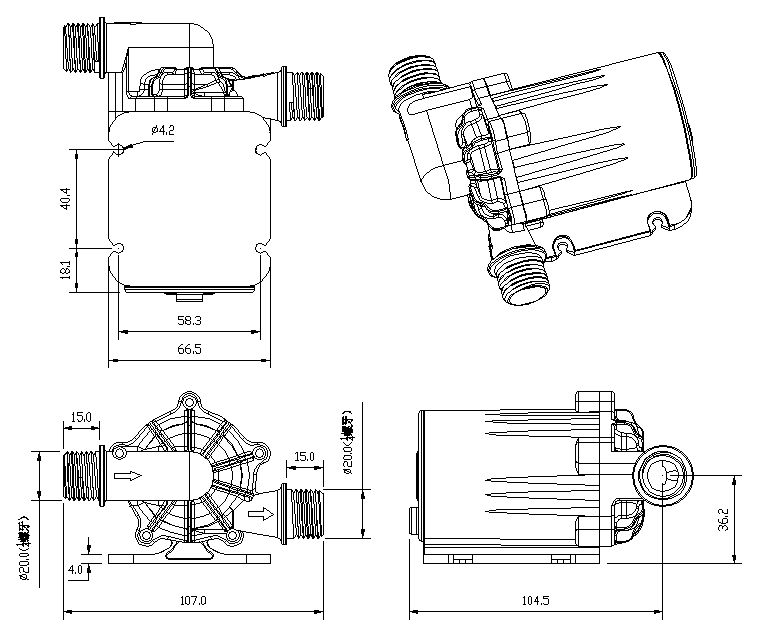

    Solar Domestic Pump VP50 size
