Air Source Water Heater Pump VP60M

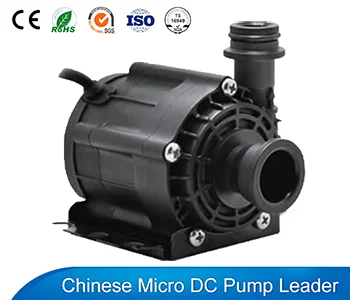

air water heater pumps vp60m

Air Source Water Heater Pump VP60M is a 12v hot water booster pump that can endure as high as 125℃ fluids temperature. It widely used in home water heaters.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

9M
Max Flow

1500L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Air Source Water Heater Pump VP60M is a high performance hot water booster pump. VP60M has a special structure inlet and outlet. It’s very convenient for customer to install the pump in the water heater or systems. VP60M pump can endure as high as 125℃ fluids temperature. and has a long life span and high efficiency. It is widely used in water booster systems for homes. Such as Air Source Water Heater, Domestic air source heat pump water heater, and other hot water booster systems, etc.

    Air Source Water Heater Pump Application:

    As a high performance hot water recirculating pump with working life span over 20,000 hours and special function like dry-run protection, PWM speed adjust function. VP60M pump is popular by in water heater market and can used for below applications:

  • Air Source Water Heaters
  •  Solar water heaters
  •  Hot Water circulation systems for home
  • Separated water heater
  • Other hot water booster systems
    • ■ Specifications
    2 Max Static Lift 9M
    3 Rated Voltage 24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushless motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP30
    12 Use Place Indoor
    13 Working Voltage Range 12V-30V
    15 Noise Class form 1M 48dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    21 Weight 0.24 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    24 12~30 – 9.0 – – ≤48
    ■ Curve & Dimension
