Automotive Coolant Pump VP80B

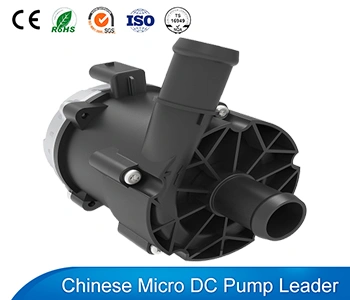

automotive electric water pump for car vp80b

Automotive Coolant Pump VP80B is built by a dc motor. It is widely used in Circulating systems, such as new energy vehicle auxiliary cooling cycle, intelligent toilet.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

9M
Max Flow

2460L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Automotive Coolant Pump VP80B is a electric coolant pump that built by a bldc motor. It is widely used in Circulating systems, such as new energy vehicle auxiliary cooling cycle. And use as a intelligent toilet pump for people to wash the toilet. It can pump coolant, antifreeze, pure water common fluids. VP80B pump is a good choice for auto cooling and kitchen applications due to it’s long life span and perfect performance.

    Automotive Coolant Pump Features:

  • Driven method: Advanced BLDC motor driving technology.
  • Work life span: It with More than 20,000 hours life span.
  • Power supply: Battery,Power supply,solar panels.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution.
  • Speed control way: PWM/Manual speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Blocked protection,Locked-rotor protection,Dry-running protection.

    • Car Pump Application:

    Automotive Coolant Pump is a small electric water pump which can be used for coolant and water circulation. Suitable for applied in auto,car,bus,intelligent toilet,and other bathroom and kitchen equipment. Mainly used for pump antifreeze,fresh water,and other liquids various application.

  • Vehicle Warm air conditioner cycles
  • Pure electric buses motor control system hot water circulation
  • Coolant circulation
  • Torque converter cooling cycle
  • Battery cooling and auxiliary heating cycle
  • Intelligent toilet.
  • Other kitchen equipment

    • automotive coolant pump VP80B application

    ■ Specifications
    1 Max Flow Rate 41L/MIN
    2 Max Static Lift 9M
    3 Rated Voltage 13.5V/24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 72W
    15 Noise Class form 1M 48dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 20 mm
    19 OD of Outlet 20 mm
    20 Dimension 118.3*103*118 mm
    21 Weight 0.71 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 6 9 41 72 ≤48
    24 12~30 3 9 41 72 ≤48
    ■ Curve & Dimension

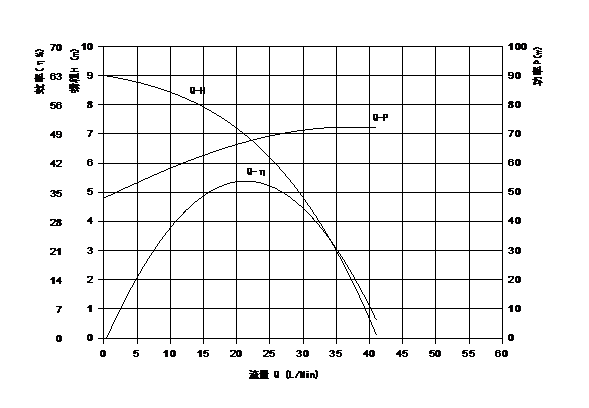

    automotive coolant water pump VP80B flow

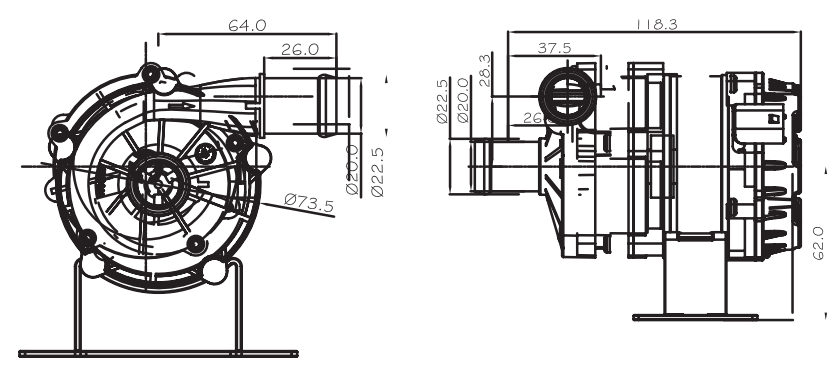

    automotive coolant water-pump VP80B size
