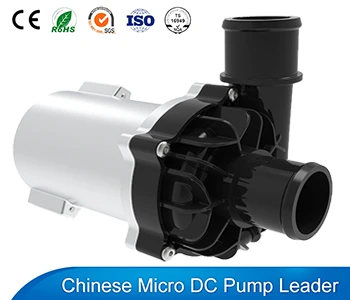

Auto Electric Water Pump for Bus VP90C

bmw electric water pump vp90c

Automotive electric water pump for bus VP90C is a high quality made coolant pump. Driven by a bldc motor. It’s used in car and bus, intelligent toilet, bathtub.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

9M
Max Flow

7200L/H, 10800L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Automotive electric water pump for Bus VP90C is a high quality made automotive electric water pump. It’s widely used in car and bus, intelligent toilet, Intelligent bathtub. Such as Hybrid buses motor control system hot water circulation, 12M pure electric bus and hybrid bus motor control cooling cycle, hybrid bus motor control cooling cycle etc. It has many advantages compared with brushled dc and AC water cooling pumps. As a electric coolant pump VP90C pump has the capability of enduring as high as 120℃ fluids temperature with the special material used,it’s very popular in the auto industry after-sale markets.

    Automotive Electric Water Pump for Bus Features:

  • Driven method: Advanced dc brushless motor driving technology.
  • Long Life span: It’s life span more than 20,000 hours life span.
  • Power supply: Battery,Power supply,solar panels.
  • Working Fluids: Water, Antifreeze, provide oil, acid and alkali solution
  • With FG signal output function [optional]
  •  Speed control way: PWM/CAN/LIN speed control function [optional].
  • IP protection level: IP67, submersible use .
  • Special function: Blocked protection,Locked-rotor protection,Dry-running protection

    • Electric Pump Application:

  • Engine cooling cycle electronic pump
  • Pure electric buses motor control system hot water circulation
  • 12M pure electric bus and hybrid bus motor control cooling cycle
  • Torque converter cooling cycle
  • Intelligent bathtub
  • Intelligent toilet
  • Other bathroom and kitchen equipment

    • electric water pump for car VP90C application

    ■ Specifications
    1 Max Flow Rate 120L/MIN,180L/MIN
    2 Max Static Lift 9M,9M
    3 Rated Voltage 24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 12V-30V
    14 Power Consumption 200W,240W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 39 mm
    19 OD of Outlet 39 mm
    20 Dimension 180.9*156*90mm
    21 Weight 2.4 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    24 12~30 8 9 120 200 ≤50
    24 12~30 10 9 180 240 ≤50
