Computer Water Cooling Pump VP40P

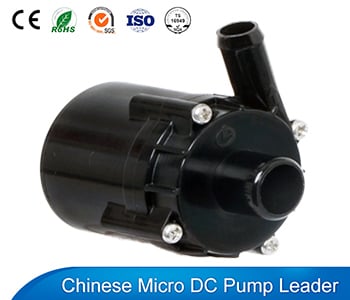

computer cooling pump vp40p

Computer Water Cooling Pump VP40P is a small ultra quiet water pump,it’s noise less than 24dB. Widely used for hot water mattress, cooling mattress, computer cooling,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

2M,3M
Max Flow

288L/H,360L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

,

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Computer Water Cooling Pump VP40P is a mini ultra quiet water pump. It is built by a brushless dc motor that makes it with long life span more than 30,000 hours. With lower noise less than 24dB at 1M distance. VP40P can be used as a PC water cooling pump for CPU cooling. It is also designed to be used for appliance and equipment that with quiet requirements such as hot water mattress, small boiler, cooling circulation systms.

    Computer Water Cooling Pump Features:

    • Driven method: Brushless DC motor driving technology inside
    • High efficiency: With Working efficiency more than 60%
    • Low noise : It is with ultra quiet noise lower than 23dB from 1m distance.
    • Max temperature : With 70℃ Max work temperature
    • Low or no maintenance
    • IP protection level: IP68
    • Fluids:Pure Water/Antifreeze or other fluids

    Quiet Pump Application:

    • Small boiler
    • Computer cooling
    • LED lights cooling
    • Cooling mattress water circulation
    • Hot water mattress circulation
    • Floor heating circulation system
    • Other Water circulation

    computer water cooling pump VP40P application

    ■ Specifications
    1 Max Flow Rate 4.8L/MIN,6L/MIN
    2 Max Static Lift 2M,3M
    3 Rated Voltage 12V
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushless motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP22
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V
    14 Power Consumption 3W,6W
    15 Noise Class form 1M 24dB /(A)
    16 Ideal Life Time 30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 10.0 mm
    19 OD of Outlet 16.5 mm
    20 Dimension 52.8*40*58.9mm
    21 Weight 0.1kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.25 2 4.8 3.0 ≤24
    12 8~20 0.5 3.0 6.0 6.0 ≤28
    ■ Curve & Dimension
