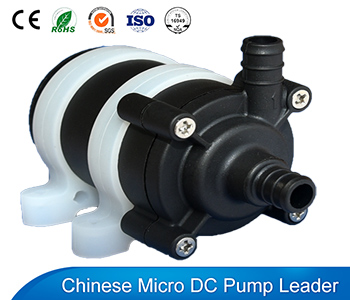

Cooling Water Circulation Pump VP40

cooling water circulation pump

Cooling water circulation pump VP40 is a high efficient 12V small dc water pump, it is widely used in air conditioning, LED lights cooling,laser machine,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

5M,7M
Max Flow

450L/H,600L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Cooling Water Circulation Pump VP40 is a high performance circulation dc Water Pump. VP40 pump is more safer ,quieter, efficiency and lower power consumption when it is compared to a AC water pump, or brushed dc water pump. Due to it is driven by a brushless dc motor which with much more efficient and long life span than other type motor. As a high quality made mini dc water pump, VP40 pump are widely used in various applications, such as: fountain, dishwasher, aquarium, outdoor, and other circulation systems, or cooling water circulation systems etc.

    Cooling Water Circulation Pump Features:

  • Motor type: DC brushless motor
  • Long life span: More than 30000 hours
  • Quiet: noise lower than 40dB
  • Low or no maintenance

    • Cooling Water Circulation Pump Application:

  • Communication base station.
  • Air conditioning drainage.
  • LED lights cooling.
  • Laser cutting machine, Marking Machine
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 7.5L/MIN,10L/MIN
    2 Max Static Lift 5M,7M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-60°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -10°-60°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 5V-14V,10V-26V
    14 Power Consumption 14.4W,28.8W
    15 Noise Class form 1M <40dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 Inlet OD 14mm
    19 Outlet OD 10mm
    20 Dimension 79.5mm*61.5mm*59mm
    21 Weight 0.27 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 5~14 1.2 5 7.5 14.4 ≤40
    24 10~26 1.2 7 10 28.8 ≤40
    ■ Curve & Dimension

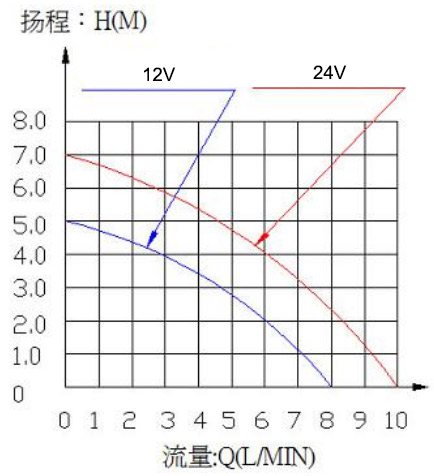

    Water Circulation Pump VP40 flow

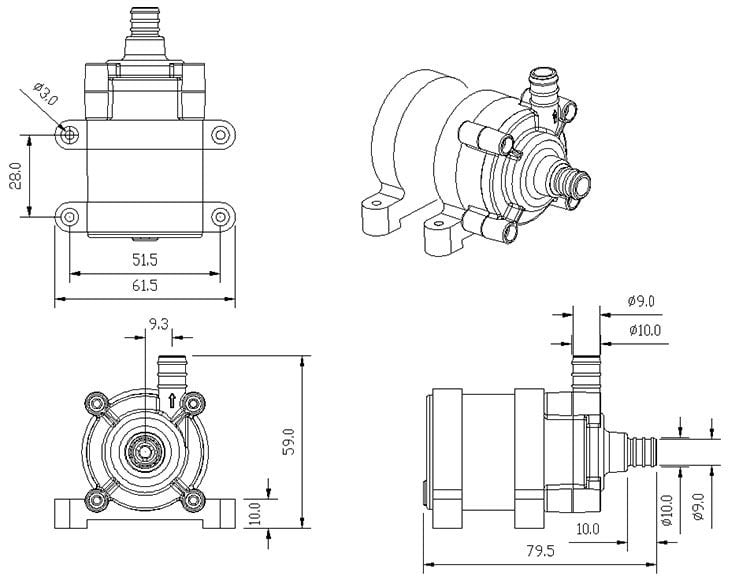

    Water Circulation Pump VP40 size
