CPU Water Cooling Pump VP60R

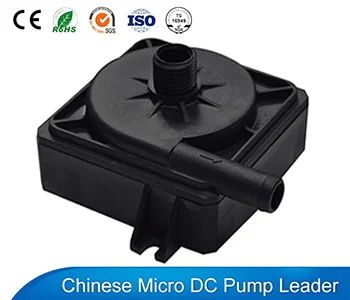

cpu water cooling pumps vp60r

CPU Water Cooling Pump VP60R is a ultra quiet water pump built by PPE material. Commonly used for computer cooling, led lights cooling, hot water mattress etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

2.4M
Max Flow

390L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    CPU Water Cooling Pump VP60R is a 12V small quiet PC water cooling pump which built by PPE material. Driven by a high efficiency small BLDC motor. As a quiet water pump VP60R’s working noise is low than 28dB from 1 meter distance. VP60R commonly used for computer cooling, led lights cooling, and other water circulation equipment. As its high performance in noise, highly recommend this pump to people use it in PC cooling system, and hot water mattress.

    CPU Water Cooling Pump Features:

  • Driven motor: It is driven by dc brushless motor
  • Life span:Its working life span is more than 20,000 hours
  • Low noise : With quiet working noise low to 28dB
  • Max work temperature : VP60R pump can pump 70℃ hot water

    • Quiet Pump Application:

  • PC water cooling system
  • LED lights
  • Plumbing mattress, cooling mattress
  • Other require low noise work machine

    • cpu water cooling pump VP60R application

    ■ Specifications
    1 Max Flow Rate 6.5L/MIN
    2 Max Static Lift 2.4M
    3 Rated Voltage 12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP55
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V
    14 Power Consumption 7W
    15 Noise Class form 1M 28dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/4 inch
    19 OD of Outlet 10mm
    20 Weight 0.14 kg
    21 Power Supply DC power supply, battery, solar powered
    22 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Operating Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.6 2.4 6.5 7.0 ≤28
    12 8~20 0.6 2.4 6.5 7.0 ≤28
    ■ Curve & Dimension

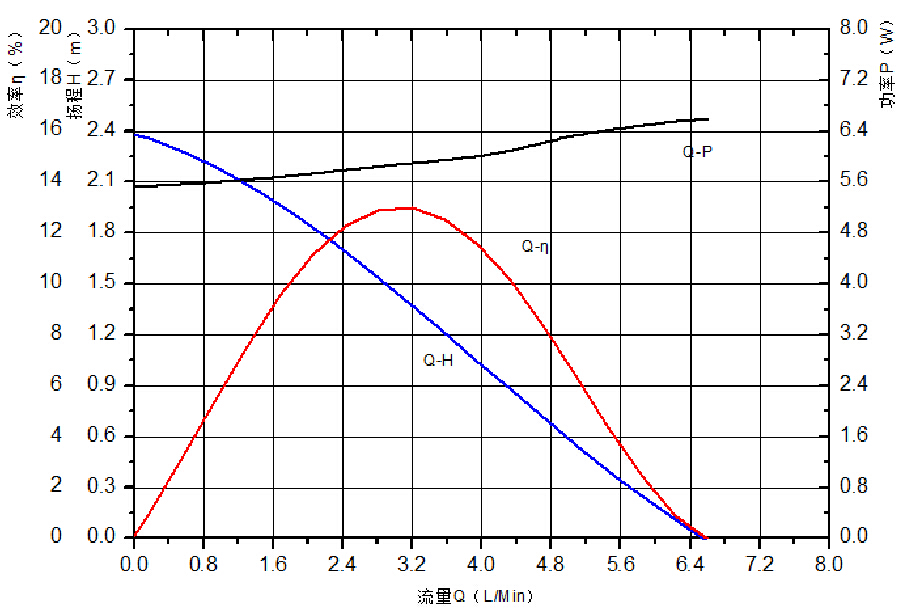

    cpu water cooling pump VP60R flow

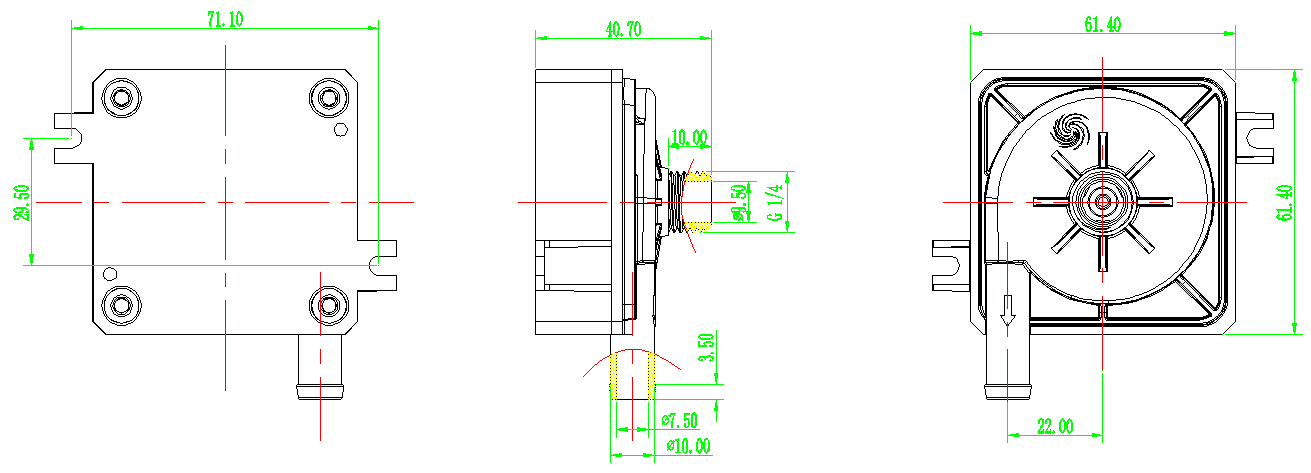

    cpu water cooling pump VP60R size
