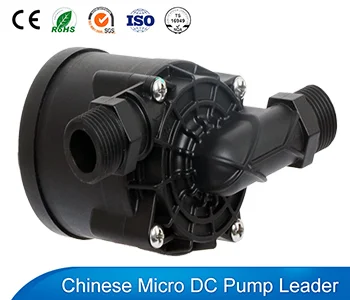

DC Water Heater Pump VP60N

dc water heater pump vp60n

DC Water Heater Pump VP60N is a small water circulation pump. It is widely used in circulating systems for home such as hot water heater, water booster etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

11M,16M
Max Flow

1200L/H,1380L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    DC Water Heater Pump VP60N is a hot water recirculating pump. It is driven by a small brushless dc electric motor and widely used in circulating systems for home such as hot water heater, Separated water heater etc. Driven by a bldc motor it’s life span is more than 20000 hours. Our VP60N series Water Heater Pump can work with as high as 125℃ temperature fluids. Also VP60N can endure 10 bar system pressure. It is well sold in China, India as well as in southeast Asian water heater, and water booster market. Highly recommend it to people use this pump in water heater. Since it has many advantages when compared with pumps from other manufacturers, after upgrading for several generations.

    DC Water Heater Pump Application:

  •  Indoor and outdoor Solar water heater, electric water heater, instant water heater
  •  Pipeline water booster.
  • Hot pump air conditioner
  • Other hot Water circulation, water booster systems

    • water heater pumps VP40N application

    ■ Specifications
    1 Max Flow Rate 20L/MIN,23L/MIN
    2 Max Static Lift 11M,16M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -25°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP67
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 36W,65W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    21 Weight 0.45 kg
    22 Power Supply DC power supply, battery, solar powered
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 2.5 11.0 20.0 36 ≤40
    24 12~30 2.7 16.0 23.0 65 ≤40
    ■ Curve & Dimension
