Electric Circulation Pump VP40F

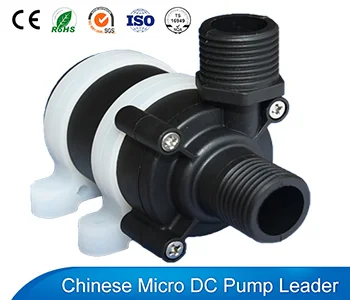

hot water booster pump vp40f

Electric Circulation Pump VP40F is a 12V powered by a bldc motor. Widely used in water heater, communication base station,water tanks, air conditioner,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

3M,5M
Max Flow

798L/H,1000L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Electric Circulation Pump VP40F is a circulation Water pump. Built by ROHS meet material, VP40F is safety to people ,and as a battery powered water pump it can be powered by a 12v or 24V battery, and solar panel. It’s main function is to circulate the water or pump the water from a low place to high place. Moreover, VP40F is a high efficient brushless dc pump which with long life span more than 30000 hours. It commonly used in circulation systems like Water or oil or hot water circulation. Such as cutting machine, marking Machine, engraving machine, water tanks, medical water circulation cooling systems, solar fountain etc.

    Electric Circulation Pump Features:

  • Motor type: dc brushless motor
  • Long life span: More than 30000 hours
  • Quiet: noise lower than 40dB
  • Meet ROHS

    • DC Pump VP40F Application:

  • Communication base station.
  • Fountain.
  • LED lights cooling.
  • Air conditioning
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 13.3L/MIN,16.6L/MIN
    2 Max Static Lift 3M,5M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-60°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushles motor
    9 Ambient Temperature -10°-60°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 5V-14V,5V-26V
    14 Power Consumption 15.6W,28.8W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet Φ20mm (1/2 inch thread)
    19 OD of Outlet Φ20mm (1/2 inch thread)
    20 Dimension 76.5mm*46.4mm*47.4mm
    21 Weight 0.27 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 5~14 1.3 3 13.3 15.6 ≤40
    24 10~26 1.2 5 16.6 28.8 ≤40
    ■ Curve & Dimension

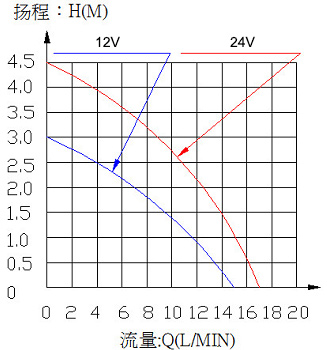

    Electric Circulation Pump VP40F flow

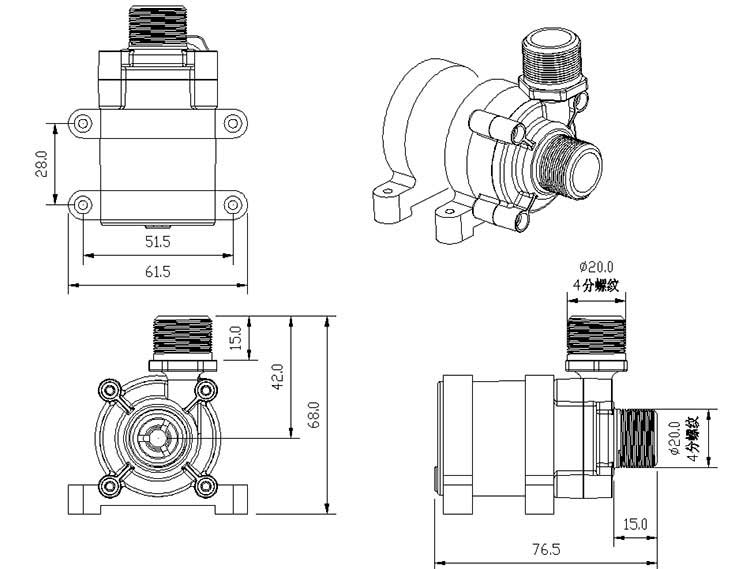

    Electric Circulation Pump VP40F size
