Electric Water Heater Pump VP40T

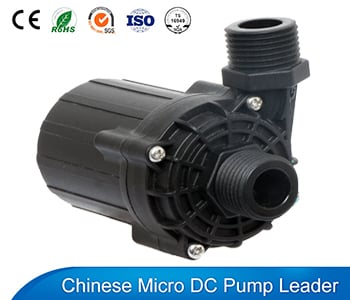

electric water heater pumps vp40t

Electric water heater pump VP40T is a hot water booster pump, driven by a dc motor. Used for solar water heater, instant water heater, gas water heater etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

8M, 13M, 15M
Max Flow

600L/H, 720L/H, 780L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Electric Water Heater Pump VP40T is a high quality made small hot water booster pump, driven by a high efficiency bldc motor. It is widely used in various machines such as: Solar water heaters, circulating systems for homes, Separate electric water heater, etc. Our VP40T series mini electric water heater pump can work with as high as 100℃ temperature water. With high quality closed impeller technology, the VP40T water heater pump can output more higher performance with the same power compared with other company’s product.

    Electric Water Heater Pump Features:

  • Motor: DC brushless motor driving technology inside
  • Low working noise : VP40T is a quiet water pump its working noise is lower than 35dB
  • Max working temperature : VP40T Can pump 100℃ temperature fluids
  • Life span :VP40T pump can work for more than 20,000 hours.

    Electric Pump Application:

  •  Wall Mounted Solar water heater
  •  Pipeline water booster.
  • Separated water heater
  • Pressure-bearing water tanks
  • Other Water booster application
    • ■ Specifications
    1 Max Flow Rate 10L/Min, 12L/Min, 13L/Min
    2 Max Static Lift 8M,13M,15M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -25°-80°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushless motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 17W,31.2W, 36W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >25,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet Φ20mm(1/2 inch thread)
    19 OD of Outlet Φ20mm(1/2 inch thread)
    20 Dimension 83.4*48*69.7mm
    21 Weight 0.21kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 1.41 8 10.0 17 ≤40
    24 12~30 1.3 13.0 12.0 31.2 ≤40
    24 12~30 1.5 15.0 13 36 ≤40
    ■ Curve & Dimension

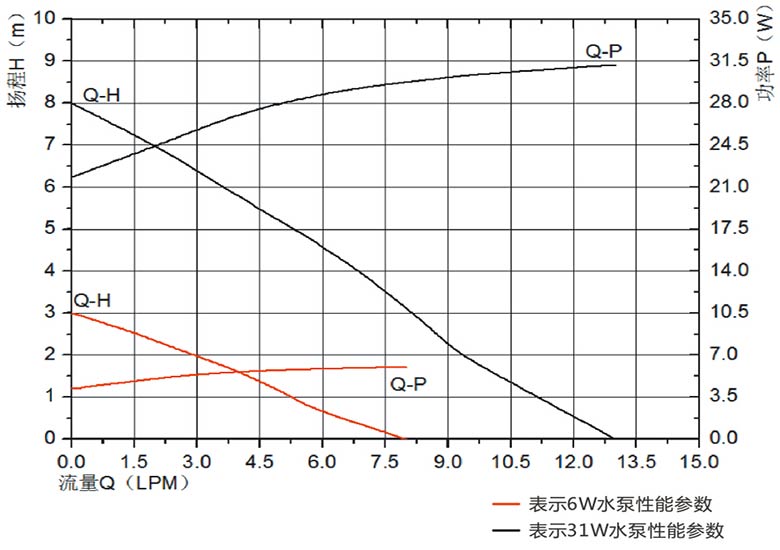

    solar water heater pumps VP40T flow

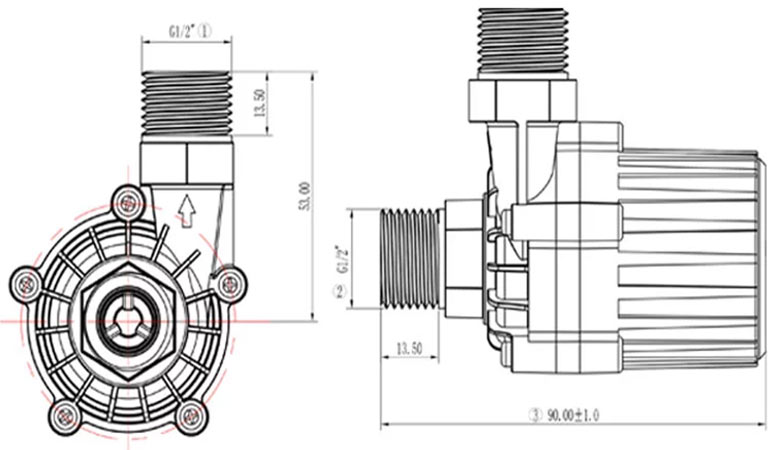

    electric water heater pump VP40T size
