Electric Water Pump for Car VP90A

automotive electric water pump vp90a

Electric Water Pump for Car VP90A is made by a bldc motor. It is mainly applied in engine cooling cycle systems,intelligent toilet,Intelligent bathtub etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

24M, 25M
Max Flow

6000L/H, 6600L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Electric Water Pump for Car VP90A is high quality made electric coolant pump. Mainly applied in car cooling cycle systems, intelligent toilet, intelligent bathtub etc. It usually used as a automotive electric water pump for 12M pure electric bus and hybrid bus motor control cooling cycle. It can pump coolant, antifreeze, pure water etc. VP90A pump is one of the most popular pump which used for new energy vehicle cooling cycle in car industry in China and aboard.

    Electric Water Pump for Car Features:

  • Driven motor:It is driven by a dc brushless motor.
  • Long Life Span: It can work for more than 20,000 hours.
  • Duty work:can sustain continuous 24 hours work
  • Working Fluids: It can pump Water, Antifreeze, provide oil, acid and alkali solution
  • With FG signal output function [optional]
  •  Speed control way: PWM/CAN/LIN speed control function [optional].
  • Waterproof protection level: IP67, submersible use.
  • Special function: Blocked protection, Locked-rotor protection, Dry-running protection

    • Electric Pump Application:

  • Widely used in Engine cooling cycle electronic pump
  • Pure electric buses motor control system hot water circulation
  • 12M pure electric bus and hybrid bus motor control cooling cycle
  • Torque converter cooling cycle
  • Intelligent bathtub
  • Intelligent toilet
  • Other bathroom and kitchen equipment

    • electric water pump for car dp9007 application

    ■ Specifications
    1 Max Flow Rate 100L/MIN,110L/MIN
    2 Max Static Lift 24M,25M
    3 Rated Voltage 24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -40°-125°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -40°-120°C
    10 Media Antifreeze/Pure Water
    11 Waterproof Class IP67
    12 Use Place Vehicle/Indoor
    13 Working Voltage Range 12V-30V
    14 Power Consumption 252W,288W
    15 Noise Class form 1M 50dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 38 mm
    19 OD of Outlet 38 mm
    20 Dimension 183*103*240mm
    21 Weight 2.4 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    24 12~30 10.5 24 100 252 ≤60
    24 12~30 12 25 110 288 ≤60
    ■ Curve & Dimension

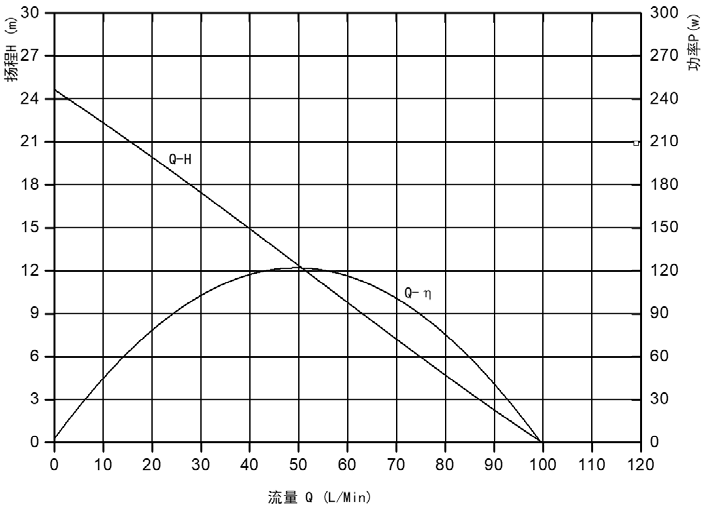

    car electric water pump VP90A flow

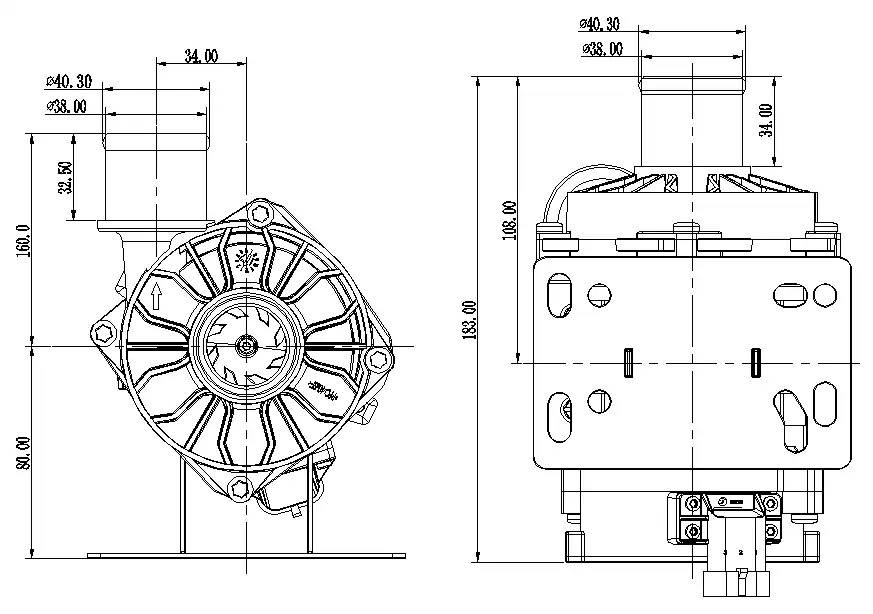

    car electric water pump VP90A size
