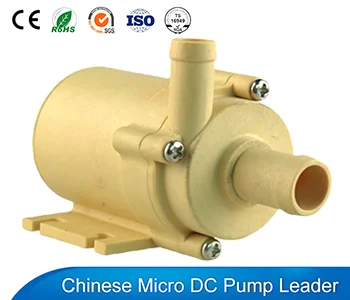

Food Grade Electric Pump VP35C

food grade electric pump

Food grade electric pump VP35C is a small electric food safe water pump. Made by PPE, powered by battery, solar panel, etc. Well saled in Asia, US, India and EU market.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

1.5M,3M
Max Flow

270L/H,420L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Food grade electric pump VP35C is a mini electric food grade pump. It can be driven by dc power supply, battery, solar panel, etc. It is designed to be used for commercial and industry applications, such as pump pure water for coffer maker, juice machine, dispenser, etc. People also can use it as a hot water recirculating pump for hot water circulation systems. With life span more 20,000 hours and perfect performance food grade electric pump VP35C is popular and well sale in home and aboard market.

    Food Grade Electric Pump Features:

  • Driven method: Magnetic driving technology use in it, static-seal without any leakage forever
  • High efficiency: It’s work efficiency is more than 60% due to driven by a dc brushless motor
  • Low noise : Ultra quiet noise lower than 30dB
  • Food grade: All wet materials FDA certified (food safe)
  • Max temperature : 100℃
  • Low or no maintenance
  • IP protection level: IP68

    • Electric Pump Application:

    Food Grade Electric Pump is a mini electric water pump. It is widely used for pump pure water, FDA Liquid for water circulation and water cooling.There are widely used for below applications.

  • Water dispenser/water coolers
  • Coffee maker/coffee machine
  • Beverage dispenser/juice machine
  • Water purifier
  • Tea maker
  • Other Water circulation

    • food grade water pump VP35C application

    ■ Specifications
    1 Max Flow Rate 4.5L/MIN,7L/MIN
    2 Max Static Lift 1.5M,3.0M
    3 Rated Voltage 12V,24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) Y
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushless motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water
    11 Waterproof Class IP68
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 3.3W,8.4W
    15 Noise Class form 1M 30dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 13.2 mm
    19 OD of Outlet 8.8 mm
    20 Dimension 74*56*35mm
    21 Weight 0.10 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Operating Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.27 1.5 4.5 3.3 ≤30
    24 12~30 0.35 3.0 7.0 8.4 ≤30
    ■ Curve & Dimension

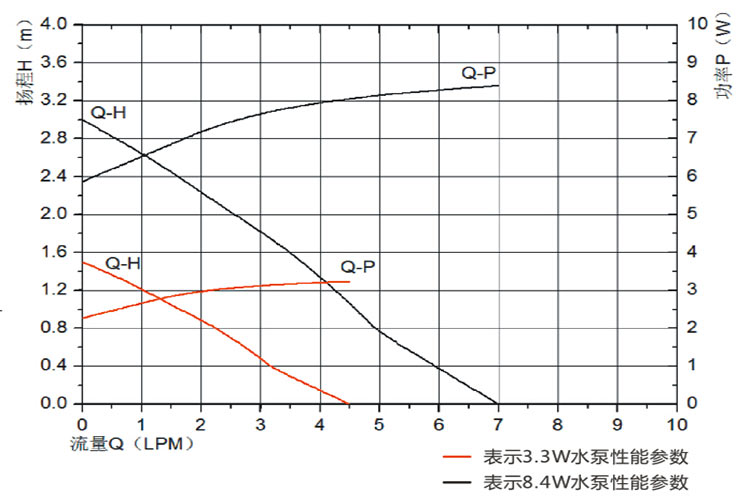

    food grade electric pump VP35C flow
