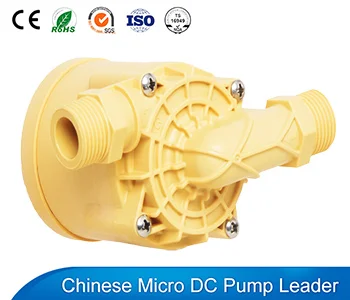

Food Grade Pumps For Brewing VP60B

food grade water pump vp60b

Food Grade Pumps For Brewing VP60B is a miniature food grade pump.It is usually used for brewing equipment, such as coffee maker, Beverage dispenser etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

8M,11M,12M
Max Flow

1020L/H,1200L/H,1260L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Food Grade Pumps For Brewing VP60B is a dc motor food grade pump. VP60B is made by food grade material that meet FDA standard which is safety to people’s health. VP60B usually used for home appliance and brewing equipment, such as coffee maker, Water dispenser, Beverage dispenser etc. In addition, VP60B pump can be used as a hot water booster pump for water heaters, and other water booster systems.

    Food Grade Pumps For Brewing Features:

  • High efficiency: More than 60% working efficiency due to driven by a dc brushless motor
  • Low noise : Ultra quiet noise lower than 48dB
  • Food grade: All wet materials FDA certified (food safe)
  • Max working temperature : Its working temperature is as high as 100℃
  • IP protection level: IP68
  • Dry-running protection
  • Locked-rotor protection
  • Reversely connection protection

    • Brewing pump Application:

    Food Grade Pumps For Brewing is a small electric water pump built by a dc brushless motor. Widely used for pump pure water, FDA Liquid antifreeze for home appliance and water circulation machines listed as below.

  • Water dispenser
  • Coffee maker/coffee machine
  • Beverage dispenser/juice machine
  • Water purifier
  • Air heater
  • Solar water heater
  • Other Water booster circulation system

    • food grade water pump VP60B applications

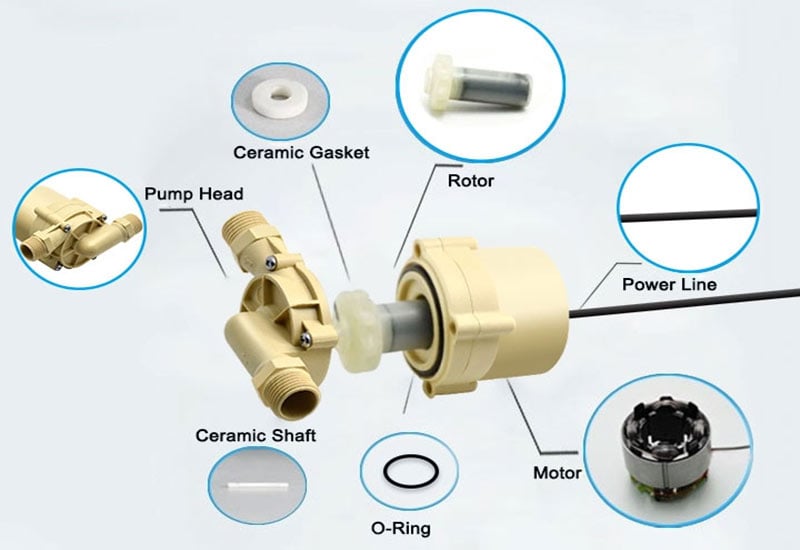

    food grade water pump VP60B parts

    ■ Specifications
    1 Max Flow Rate 17L/MIN,20L/MIN,21L/MIN
    2 Max Static Lift 8M,11M,12M
    3 Rated Voltage 12V,24V,48V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) Y
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type DC Brushless motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V,36V-55V
    14 Power Consumption 36W,53W,62W
    15 Noise Class form 1M 40dB /(A),45dB /(A),48dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    20 Dimension 108*86*60mm
    21 Weight 0.4 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 3.0 8 17 36 ≤40
    24 12~30 2.2 11 20 53 ≤45
    48 36~55 1.3 12 21 62 ≤48
    ■ Curve & Dimension

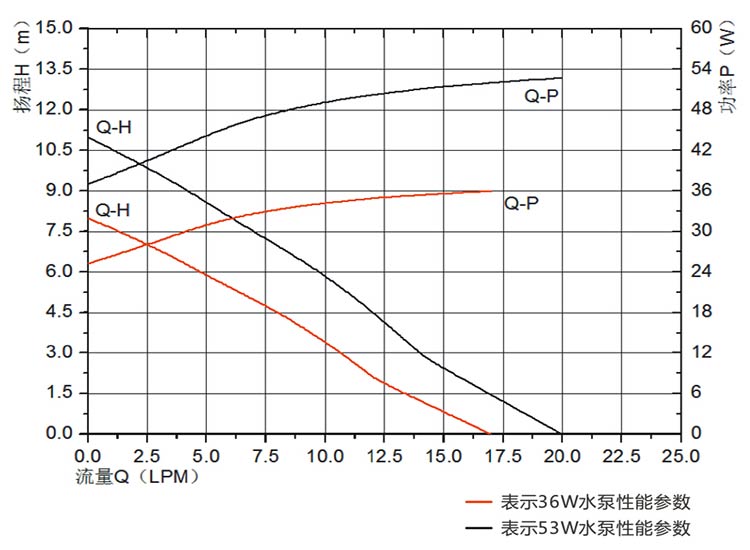

    food grade pumps for brewing VP60B flow

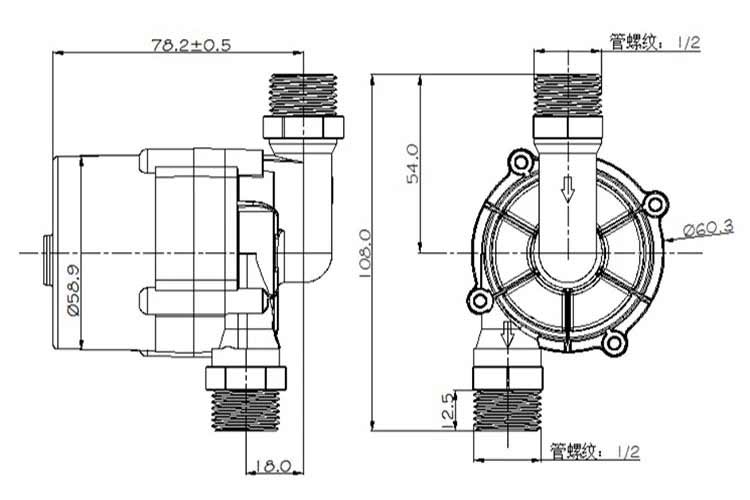

    food grade pumps for brewing VP60B size
