Food Safe Pump VP40K

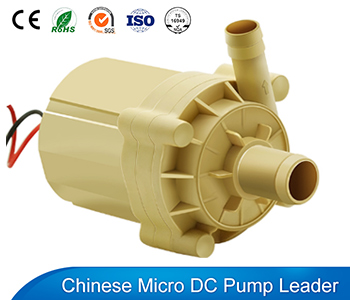

food pump vp40k

Food safe pump VP40K is a small electric water pump built by a brushless dc motor. Mainly used for home appliance such as coffee maker, juice machine, etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

3.5M,5M
Max Flow

450L/H,540L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Food Safe Pump VP40K is a high quality made food grade pump. It is made by FDA material which is safety to people’s health. It is usually used for home appliance and industry applications, such as pump pure water for juice machine, water purifier, coffee machine etc. In addition, people can also use VP40K pump as a battery powered water pump use for application where need use battery as power supply.

    Food Safe Pump Features:

  • High efficiency: BLDC motor with 60% working efficiency
  • Low noise : Working noise lower than 40dB
  • Food grade: All wet materials of the pump FDA certified (food safe)
  • Max temperature : It can pump liquid with 100℃ temperature
  • Low or no maintenance
  • IP protection level: IP55
  • Dry-running protection

    • DC Pump Application:

    Food Safe Pump VP40K is a mini dc water pump built by a brushless dc motor. Mainly used for pump pure water, FDA Liquid for home appliance and water circulation machines listed as below.

  • Water dispenser
  • Coffee maker/coffee machine
  • Beverage dispenser/juice machine
  • Water purifier
  • Medical device
  • Vending machines
  • Other Water circulation systems

    • Food Safe Pump VP40K

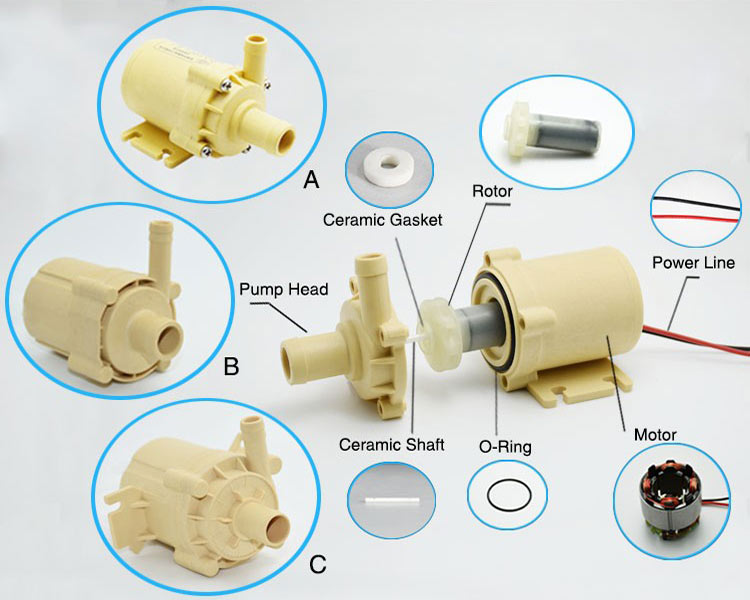

    food grade water pump VP40K structure

    ■ Specifications
    1 Max Flow Rate 7.5L/MIN,9L/MIN
    2 Max Static Lift 3.5M,5.0M
    3 Rated Voltage 12V,24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) Y
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water
    11 Waterproof Class IP55
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 8W,13W
    15 Noise Class form 1M 45dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 14.2 mm
    19 OD of Outlet 9.9 mm
    20 Dimension 79.5*68*45mm
    21 Weight 0.18 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Operating Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.65 3.5 7.5 8 ≤45
    24 12~30 0.55 5.0 9.0 13 ≤45
    ■ Curve & Dimension

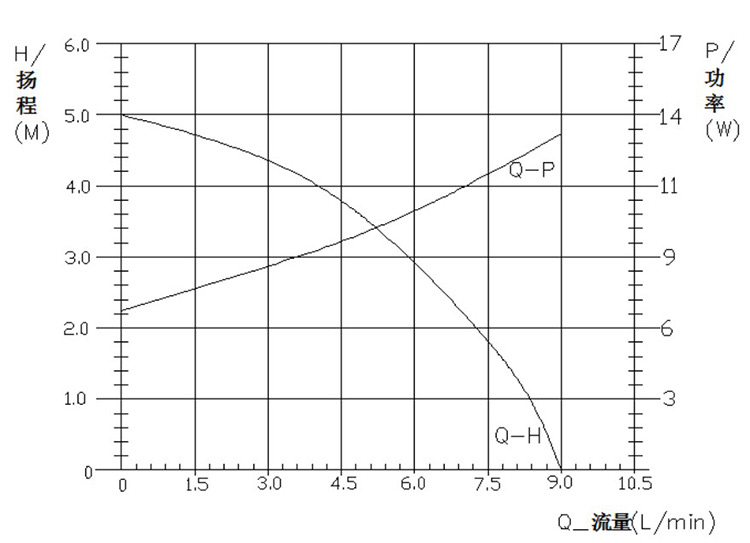

    food safe pump VP40K flow

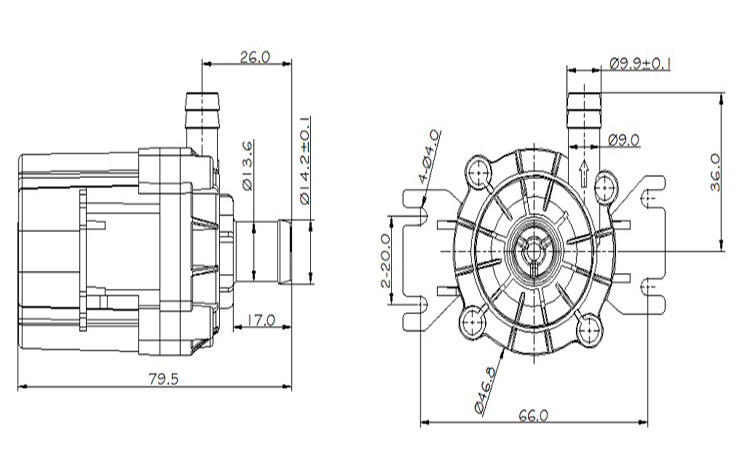

    food safe pump VP40K size
