Gas Hot Water Heater Pump VP60P

dc centrifugal water pumps

Gas Hot Water Heater Pump VP60P is a hot water booster pump. It can endure 10 bar system pressure. Widely used for Water Heater, pipeline water booster.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

11M,20M,25M,32M
Max Flow

1200,1440,1500,1560L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Gas Hot Water Heater Pump VP60P is a hot water booster pump. Brushless motor driving technology Used inside, makes it high efficiency and long life span, and low in working nose. It is widely used in water booster systems for home such as water heater, pipline water booster. VP60P gas Hot Water Heater Pump can pump 125℃ temperature fluids, it also can apply in 10 bar pressure system. In addition, VP60P pump can also used as hot water recirculating pump in hot water circulation system, such as home hot water circulation pipeline etc.

    Solar Water Heater Pump Application:

    As a high performance water booster pump, gas Hot Water Heater Pump VP60P is mainly used for water heaters and water booster systems as below:

  •  Indoor and Outdoor Solar water heater
  • Solar DC water heater
  •  Pipeline water booster.
  • Hot pump air conditioner
  • Other Water circulation

    • solar water heater pumps vp40s application

    ■ Specifications
    1 Max Flow Rate 20L/MIN,24L/MIN,25L/MIN
    2 Max Static Lift 11M,20M,25M,32M
    3 Rated Voltage 12V,24v,24V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature -25°-80°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP67/IP68
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 41W,65W,88W,120W
    15 Noise Class form 1M 45dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    21 Weight 0.4 kg
    22 Power Supply DC power supply, battery, solar powered
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 3.4 11.0 20.0 41 ≤40
    24 12~30 2.7 20.0 24.0 65 ≤45
    24 12~30 3.66 25.0 25.0 88 ≤48
    24 12~30 5 32.0 26.0 120 ≤48

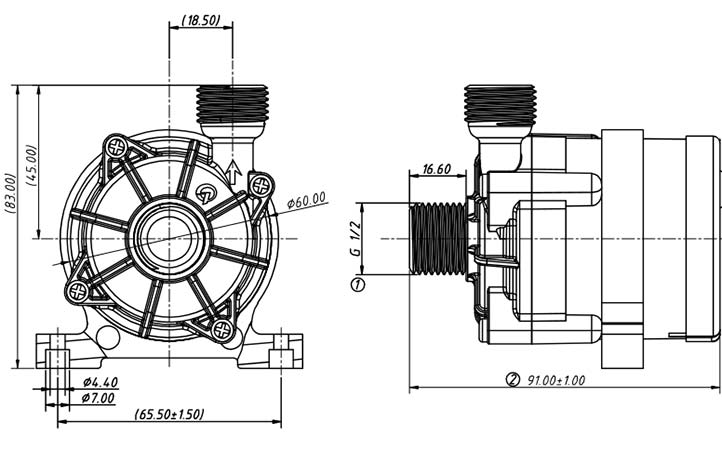

    ■ Curve & Dimension

    gas water heater pump vp60p size
