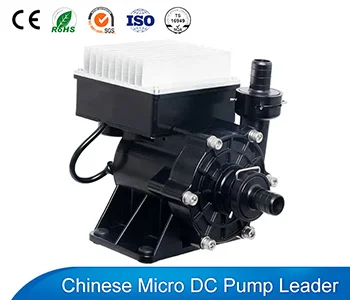

High Pressure Water Pump VP100A

high pressure water pump vp100a

High Pressure Water Pump VP100A is a AC input brushless dc water pump. Widely used for High-rise water boost system, Charging pile cooling，agricultural irrigation,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

38M, 48M
Max Flow

6000L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    High pressure water pump VP100A is a water booster pump. It built by a Brushless motor, makes it with high efficiency，long life span, and low in working nose. It with 50m water pressure can pump water from a very high level to meet various applicaton needs. Its working principle is to use centrifugal force to increase water pressure to pump water from a low level to a high level. It is widely used in industry, construction, agriculture, residential water supply systems, mine pumping and other fields.

    High pressure water pump:

    As a high performance water booster pump, high pressure water pump VP100A is mainly used for water supply systems:

  •  Residential building water supply booster system
  • Energy storage equipment cooling system
  •  Charging pile cooling system.
  • Solar irrigation system
  • Other Water circulation
    • ■ Specifications
    1 Impeller Type Closed impeller
    2 Food Grade(Y/N) N
    3 Working Fluid Temperature -30°-70°C
    4 Pump Theory Centrifugal pump
    5 Driving Motor Type Brushless dc motor
    6 Ambient Temperature -25.0°-80.0°C
    7 Working Medium Water,Coolant
    8 Waterproof Class IP67
    9 Working Voltage Range 180.00-270.0V
    10 Power Consumption 374.0W, 550.0W
    11 Noise Class form 1M distance <50.00dB /(A)
    12 Working Mode Continuous
    13 Working life >30,000 Hours
    14 OD of Inlet 20.00mm
    15 OD of Outlet 20.00mm
    16 Product Dimension 223.4*126.0*178.0mm
    17 Product Weight 3.2kg
    18 Power Supply AC Electric supply
    19 Remarks Not a self-priming pump
    ■ Parameter
    Model Rated Voltage(VDC) Opearting Voltage(VDC) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    VP100A-220380 220.0 180.0-270.0 38.0 100.0 374.0 ≤49.99
    VP100A-220480 220.0 180.0-270.0 48.0 100.0 550.0 ≤50.0
    ■ Curve & Dimension

    vp100a dimension

    Related Products

    Filter pumps by Parameters

    Select Now

    PRODUCT CATEGORY

    FEATURED PRODUCTS

    VP90A Pump Main Parameters
    Rated Voltage 24V
    Max Head 24Meters, 25Meters
    Max Flow 100L/Min, 110L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 183x103x240mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP90E Pump Main Parameters
    Rated Voltage 24V
    Max Head 45 Meters
    Max Flow 100L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 175x100x170mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP90D Main Parameters
    Rated Voltage 24V
    Max Head 18M
    Max Flow 280L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 188.1x100x176.9mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP80E Main Parameters
    Rated Voltage 13.5V, 24V
    Max Head 14M
    Max Flow 55L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 131x112x80mm
    Noise ~48dB
    Liquid Temperature -40~125 Celsius
    VP62E Main Parameters
    Rated Voltage 12V
    Max Head 9M
    Max Flow 35L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 134*120*80mm
    Noise ~40dB
    Liquid Temperature -40~125 Celsius
    VP50R Main Parameters
    Rated Voltage 12V
    Max Head 4.5M
    Max Flow 30L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 96.3*84.7*48mm
    Noise ~40dB
    Liquid Temperature -40~125 Celsius
    VP100A Main Parameters
    Rated Voltage 220V
    Max Head 38M, 48M
    Max Flow 100L/Min,100L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 223.4×126.0x178.0mm
    Noise ~50dB
    Liquid Temperature -30~70 Celsius
    VP30A Pump Main Parameters
    Rated Voltage 6V, 12V
    Max Head 1.5 Meters, 3 Meters
    Max Flow 2.5L/Min, 4L/Min
    Inlet Diameter Φ8mm
    Outlet Diameter Φ8mm
    Dimensions 53.5x40x34mm
    Noise ~30dB
    Liquid Temperature -25~50 Celsius
    VP40H Pump Main Parameters
    Rated Voltage 12V, 24V, 24V
    Max Head 8Meters, 13 Meters, 15 Meters
    Max Flow 10L/Min, 12L/Min, 13L/Min
    Inlet Diameter Φ18mm
    Outlet Diameter Φ9.8mm
    Dimensions 82.45×48.0x67.6mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP40S Main Parameters
    Rated Voltage 12V, 24V
    Max Head 3M, 8M
    Max Flow 8L/Min, 13L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 82.3x102x46.4mm
    Noise ~40dB
    Liquid Temperature -40~110 Celsius
    VP40T Pump Main Parameters
    Rated Voltage 12V, 24V, 24V
    Max Head 8Meters, 13 Meters, 15 Meters
    Max Flow 10L/Min, 12L/Min, 13L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 83.4x48x69.7mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP50E Main Parameters
    Rated Voltage 12V, 24V
    Max Head 8M, 15M
    Max Flow 20L/Min, 25L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 96.9x73x84.3mm
    Noise ~40dB
    Liquid Temperature -20~100 Celsius

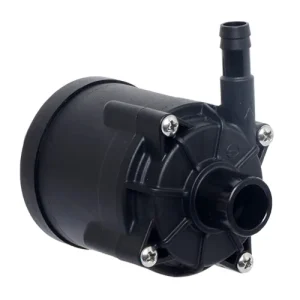

    VP60A Main Parameters
