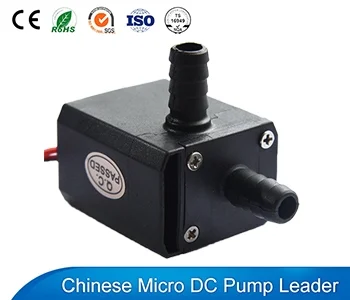

Mini Water Circulation Pump VP30A

mini water circulation pump

Mini Water Circulation Pump VP30A is a battery powered pump driven by a 6v,12V DC motor. Widely used in fountain, water mattress,floor heating, small boiler etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

1.5M, 3M
Max Flow

240L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Mini Water Circulation Pump VP30A is a battery operated water pump. It is a low rated voltage dc water pump that can be powered by a dry battery or storage battery. Built by a brushless dc motor, VP30A pump with many advantages when compare with brushed pump. Such as, its life span is more than 30000 hours and working noise lower to 30dB. Moreover, its performance is very high that 3M water head and 240L/H water flow just cost no more than 4.5W power consumption. Mini Water Circulation Pump VP30A is widely used as a small water circulation pump in the water circulation system, fountains. Or applications require pump with quiet working noise, such as hot water mattress, floor heating, small boiler, etc.

    Mini Water Circulation Pump Features:

  • Motor tpye: brushless motor
  • Working Life span: More than 30000 hours
  • Low working noise: working noise lower than 30dB from 1m distance
  • Low or no maintenance

    • Mini Water Circulation Pump Application:

  • water circulation system
  • fountains
  • hot water mattress
  • floor heating,small boiler
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 2.5L/MIN,4L/MIN
    2 Max Static Lift 1.5M,3M
    3 Rated Voltage 6V,12v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-50°C
    7 Pump Theory Centrifugal pump
    8 Motor Type Brushless DC motor
    9 Ambient Temperature -10°-50°C
    10 Media Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 4V-9V,8V-20V
    14 Power Consumption 3W,4.32W
    15 Noise Class form 1M 30dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 8mm
    19 OD of Outlet 8mm
    20 Dimension 54mm*34mm*43mm
    21 Weight 0.70 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    6 4~9 0.5 1.5 2.5 3.0 ≤30
    12 8~20 0.36 3 4.0 4.32 ≤30
    ■ Curve & Dimension

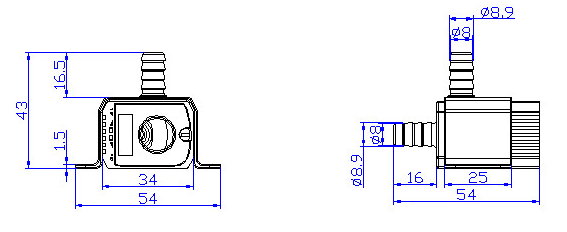

    Mini Water Circulation Pump VP30A size
