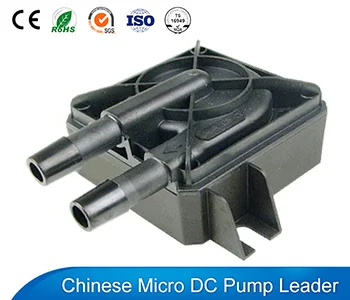

PC Cooling Pump VP60D

pc cooling pump vp60d

PC Cooling Pump VP60D is a small dc quiet water pump. It is made by a bldc motor with noise less than 25dB. Used for water mattress, computer cooling,led cooling ,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

2.4M
Max Flow

360L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    PC Cooling Pump VP60D is a high quality PC water cooling pump. It is built by a dc brushless motor which with long life span and very quiet noise performance less than 25dB at 1M distance. As a quiet water pump with ultra quiet performance and small body it is commonly used for computer cooling, hot water mattress, cooling mattress, led cooling application etc.

    PC Cooling Pump Features:

  • Duty work: 24 hours continuous running daily
  • High efficiency: brushless DC motor with long life span
  • Low noise : noise lower than 25dB
  • Max temperature : as high as 70℃ max work temperature
  • Low or no maintenance
  • IP protection level: IP32
  • Work Fluids: It can pump Pure Water/Antifreeze

    • Quiet Pump Application:

  • Small boiler water circulation system
  • CPU cooling circulation system
  • LED lights water cooling system
  • Cooling / hot mattress water circulation
  • Other Water circulation system

    • pc cooling pump VP60D application

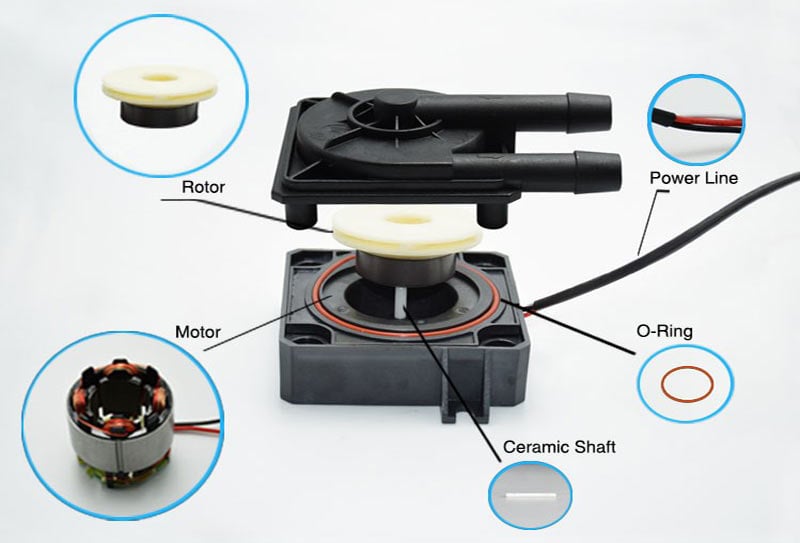

    pc cooling pump VP60D parts

    ■ Specifications
    1 Max Flow Rate 6L/MIN
    2 Max Static Lift 2.4M
    3 Rated Voltage 12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V
    14 Power Consumption 7W
    15 Noise Class form 1M 26dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 11 mm
    19 OD of Outlet 11 mm
    20 Dimension 61.4*61.4*36.2mm
    21 Weight 0.15 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.55 2.4 6.0 7.0 ≤24
    12 8~20 0.55 2.4 6.0 7.0 ≤24
    ■ Curve & Dimension

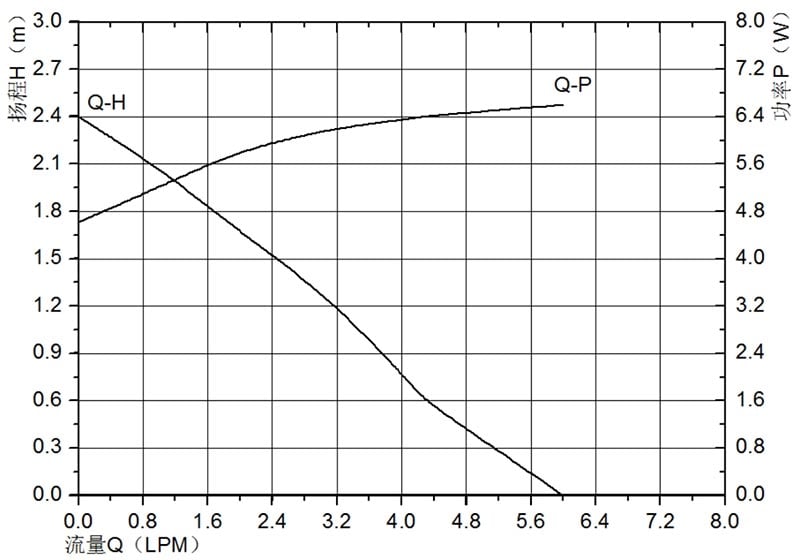

    pc cooling pump VP60D flow

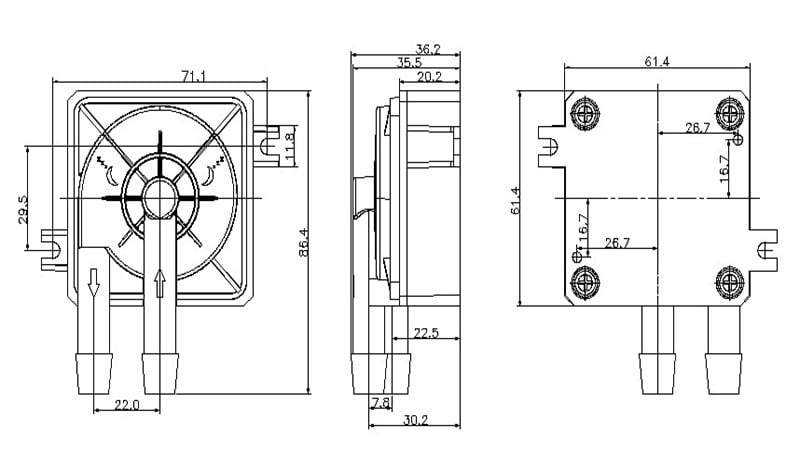

    pc cooling pump VP60D size
