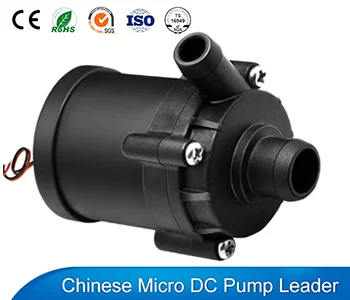

Silent Water Pump For Home VP35D

silent water pump for home vp35d

Silent Water Pump For Home VP35D is a small quiet water pump driven by a DC motor. Widely used in plumbing mattress , floor heating and PC water circulation etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

1.2M,1.7M
Max Flow

270L/H, 324L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Silent water Pump for home VP35D is a 12V super quiet water pump which driven by BLDC motor. Its working noise is low to 23dB, and can work for more than 20,000 hours. VP35D designed to be cool, quiet, compact and lightweight. People can use dc power supply, battery and solar pannel as its power supply to operate the pump. With high performance and special function like Locked-rotor protection, Dry-running protection, it is Widely used in plumbing mattress water circulation, floor heating circulation system and PC water cooling circulation etc.

    Silent Water Pump For Home Application:

    Silent Water Pump For Home VP35D is a ultra quiet hot water recirculating pump. It can be used for hot water circulation, and suitable for applying in:

  • Plumbing mattress
  • Floor heating
  • CPU water circulation
  • Other hot water circulation systems.
    • ■ Specifications
    1 Max Flow Rate 4.5L/Min,5.4L/Min
    2 Max Static Lift 1.2M/1.7M
    3 Rated Voltage 12V
    4 Impeller Type Opened impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Water/Oil
    11 Waterproof Class IP68
    12 Use Place Outdoor/Indoor
    13 Working Voltage Range 8-20V
    14 Power Consumption 2.4~3.5W
    15 Noise Class form 1M 23dB /25dB(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 13.2mm
    19 OD of Outlet ∅8.8mm
    20 Dimension 61.5*54*50mm
    21 Weight 0.09kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~17 0.2 1.2 4.5 2.4 ≤23
    12 8~17 0.3 1.7 5.4 3.6 ≤25
    ■ Curve & Dimension

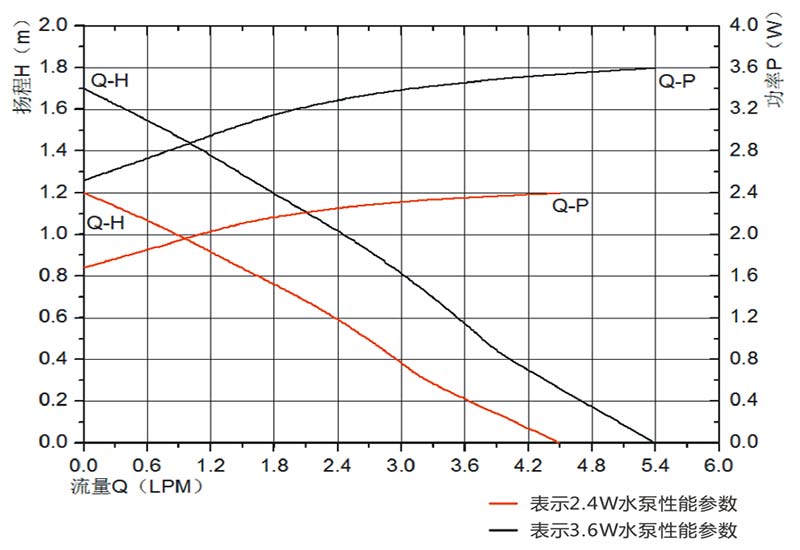

    silent water pump for home vp35d flow

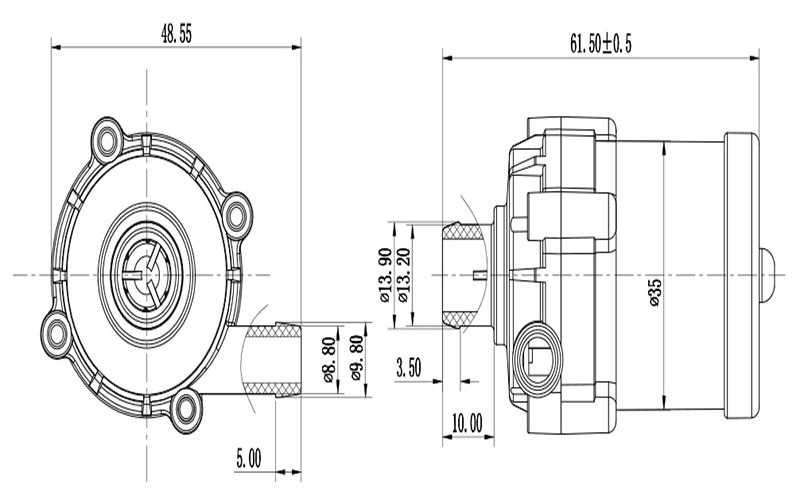

    silent water pump for home vp35d size
