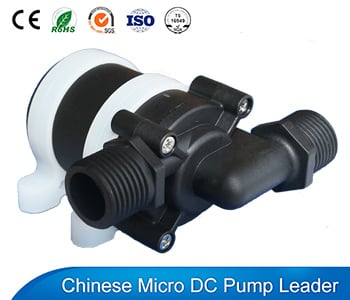

Small Recirculating Water Pump VP40C

hot water recirculating pump vp40c

Small Recirculating Water Pump VP40C is a 12V DC circulation water pump. It is small in size, high in efficiency, widely used as a recirculating water pump.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

4M, 6M
Max Flow

720L/H,900L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Small Recirculating Water Pump VP40C is a 12V small dc circulation Water pump. It small in size, high in efficiency, low in noise. As it is built by a brushless dc motor, VP40C pump can work for more than 30000 hours. It is usually used in circulation systems like Water or oil or hot water circulation and circulation cooling systems, etc. Small Recirculating Water Pump VP40C is a good choice for people who has requirements on choosing a pump with long term working life and lower noise for water circulation application.

    Small Recirculating Water Pump Features:

  • Power supply: battery,solar panel, DC power supply
  • Long life span: More than 30000 hours
  • Quiet: noise lower than 40dB
  • Meet ROHS

    • Battery Pump Application:

  • Communication base station.
  • Fountain.
  • Circulating systems for homes/li>
  • Air conditioning drainage
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 12L/MIN,15L/MIN
    2 Max Static Lift 4M,6M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-60°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -10°-60°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 5V-14V,5V-26V
    14 Power Consumption 14.4W,28.8W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet Φ20mm (1/2 inch thread)
    19 OD of Outlet Φ20mm (1/2 inch thread)
    20 Dimension 81mm*83mm*43.8mm
    21 Weight 0.235 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 5~14 1.2 4 12 15.6 ≤40
    24 10~26 1.2 6 15 28.8 ≤40

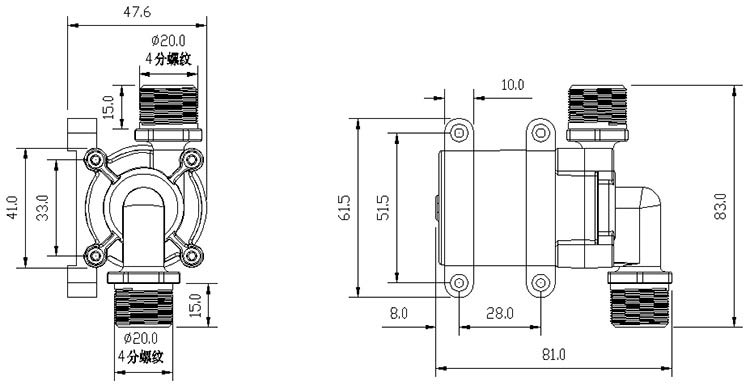

    ■ Curve & Dimension

    Water Pump VP40C size
