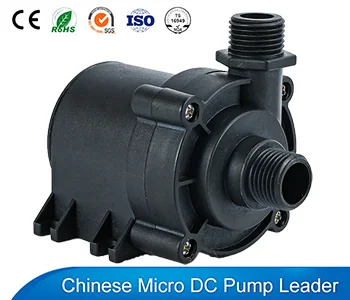

Solar DC Submersible Water Pump VP50E

solar dc submersible water pump vp50e

Solar DC submersible water pump VP50E is a 12V small solar powered water pump. Used in solar farm irrigation, agricultural spray,water circulation,etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

8M,15M
Max Flow

1200L/H,1500L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

,

Noise

,

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Solar DC Submersible Water Pump VP50E is a small solar powered water pump, design small dimensions with compact structure. It is quiet and light. It is driven by a brushless DC motor and has a high performance in water flow and water head. Moreover, its motor speed can be adjust by 0~5v voltage or PWM. As a battery operated water pump, VP50E solar DC Submersible Water Pump can also be directly powered by solar panel and battery. Therefore, VP50E is widely used in various applications such as out door solar water heater, pipeline booster, solar farm irrigation, agricultural spray, field water intake etc.

    Solar DC Submersible Water Pump Features:

  • Driven method: brushless motor driving technology inside
  • Duty work: can sustain 24 hours continuous running
  • Low noise: noise lower than 40dB
  • Max working temperature :100℃
  • 0~5V, PWM speed adjustable

    • Submersible Pump Application:

  • Out door Solar water heater
  • Solar farm irrigation
  • Agricultural spray.
  • Domestic water circulation system
  • Field water intake
    • ■ Specifications
    The Specs of Solar DC Submersible Water Pump VP50E

    1 Max Flow Rate 20L/MIN,25L/MIN
    2 Max Static Lift 8M,15M
    3 Rated Voltage 12V,24v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -10°-100°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/Outdoor
    13 Working Voltage Range 6V-14V,10V-26V
    14 Power Consumption 45.6W,91.2W
    15 Noise Class form 1M 40dB /(A)
    16 Ideal Life Time >20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/2 inch
    19 OD of Outlet 1/2 inch
    20 Dimension 115.5mm*66.5mm*93.2mm
    21 Weight 0.65 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 6~14 3.8 8.0 20 45.6 ≤35
    24 10~26 3.8 15.0 25 91.2 ≤40

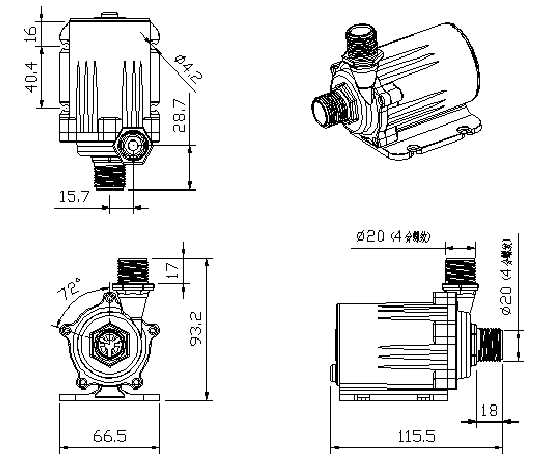

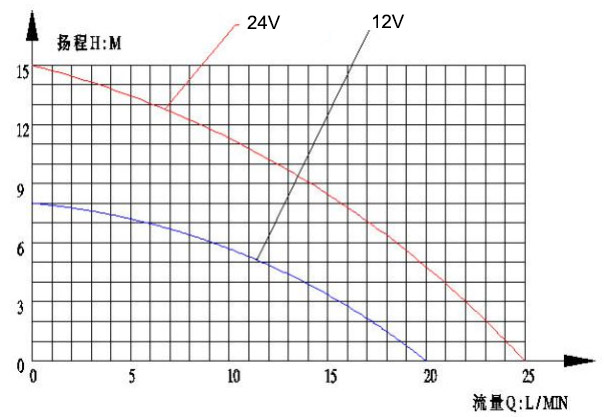

    ■ Curve & Dimension

    solar water heater pumps vp40s flow

    solar water heater pumps vp40s size

    Related Products

    Filter pumps by Parameters

    Select Now

    PRODUCT CATEGORY

    FEATURED PRODUCTS

    VP90A Pump Main Parameters
    Rated Voltage 24V
    Max Head 24Meters, 25Meters
    Max Flow 100L/Min, 110L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 183x103x240mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP90E Pump Main Parameters
    Rated Voltage 24V
    Max Head 45 Meters
    Max Flow 100L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 175x100x170mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP90D Main Parameters
    Rated Voltage 24V
    Max Head 18M
    Max Flow 280L/Min
    Inlet Diameter Φ38mm
    Outlet Diameter Φ38mm
    Dimensions 188.1x100x176.9mm
    Noise ~60dB
    Liquid Temperature -40~125 Celsius
    VP80E Main Parameters
    Rated Voltage 13.5V, 24V
    Max Head 14M
    Max Flow 55L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 131x112x80mm
    Noise ~48dB
    Liquid Temperature -40~125 Celsius
    VP62E Main Parameters
    Rated Voltage 12V
    Max Head 9M
    Max Flow 35L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 134*120*80mm
    Noise ~40dB
    Liquid Temperature -40~125 Celsius
    VP50R Main Parameters
    Rated Voltage 12V
    Max Head 4.5M
    Max Flow 30L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 96.3*84.7*48mm
    Noise ~40dB
    Liquid Temperature -40~125 Celsius
    VP100A Main Parameters
    Rated Voltage 220V
    Max Head 38M, 48M
    Max Flow 100L/Min,100L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 223.4×126.0x178.0mm
    Noise ~50dB
    Liquid Temperature -30~70 Celsius
    VP30A Pump Main Parameters
    Rated Voltage 6V, 12V
    Max Head 1.5 Meters, 3 Meters
    Max Flow 2.5L/Min, 4L/Min
    Inlet Diameter Φ8mm
    Outlet Diameter Φ8mm
    Dimensions 53.5x40x34mm
    Noise ~30dB
    Liquid Temperature -25~50 Celsius
    VP40H Pump Main Parameters
    Rated Voltage 12V, 24V, 24V
    Max Head 8Meters, 13 Meters, 15 Meters
    Max Flow 10L/Min, 12L/Min, 13L/Min
    Inlet Diameter Φ18mm
    Outlet Diameter Φ9.8mm
    Dimensions 82.45×48.0x67.6mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP40S Main Parameters
    Rated Voltage 12V, 24V
    Max Head 3M, 8M
    Max Flow 8L/Min, 13L/Min
    Inlet Diameter Φ20mm
    Outlet Diameter Φ20mm
    Dimensions 82.3x102x46.4mm
    Noise ~40dB
    Liquid Temperature -40~110 Celsius
    VP40T Pump Main Parameters
    Rated Voltage 12V, 24V, 24V
    Max Head 8Meters, 13 Meters, 15 Meters
    Max Flow 10L/Min, 12L/Min, 13L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 83.4x48x69.7mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP50E Main Parameters
    Rated Voltage 12V, 24V
    Max Head 8M, 15M
    Max Flow 20L/Min, 25L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 96.9x73x84.3mm
    Noise ~40dB
    Liquid Temperature -20~100 Celsius
    VP60A Main Parameters
    Rated Voltage 12V, 24V,24V,24V
    Max Head 11M, 20M, 25M, 32M
    Max Flow 20L/Min, 24L/Min, 25L/Min, 26L/Min
    Inlet Diameter Φ20.3mm
    Outlet Diameter Φ11.3mm
    Dimensions 90.9x60x85.85mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP60P Main Parameters
    Rated Voltage 12V, 24V,24V,24V
    Max Head 11M, 20M, 25M, 32M
    Max Flow 20L/Min, 24L/Min, 25L/Min, 26L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 90.9x60x85.85mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
    VP60N Main Parameters
    Rated Voltage 12V, 24V
    Max Head 11M, 16M
    Max Flow 20L/Min, 32L/Min
    Inlet Diameter Φ20mm (1/2 inch thread)
    Outlet Diameter Φ20mm (1/2 inch thread)
    Dimensions 92.5x60x108mm
    Noise ~40dB
    Liquid Temperature -25~80 Celsius
