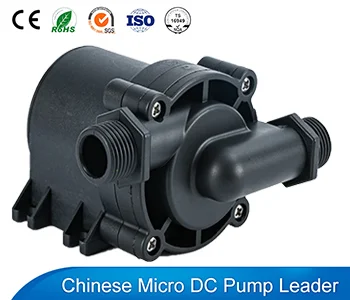

Solar Powered DC Pump VP50C

solar powered dc pump vp50c

Solar Powered DC Pump VP50C is a 12V small submersible water pump. Widely used in hot water recirculating system, farm irrigation, agricultural spray etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

4M, 8M
Max Flow

1620L/H,2400L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

,

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Solar Powered DC Pump VP50C is a small solar powered hot water recirculating pump. It is small in size with compact structure. VP50C has a very high performance and long life span due to it is driven by a high efficiency BLDC motor. Moreover, VP50C with speed adjust function through adjust voltage or input PWM control signal. As a Solar Powered DC Pump, VP50C has various power supply form such as battery, solar panel, dc power supply etc. Small in size ,high in efficiency, long in life, also can be submerge working in water. Thus VP50c is widely used in hot water recirculating system, Solar farm irrigation, agricultural spray etc. Moreover, it can also used as a hot water booster pump in home water booster systems and water heaters.

    Solar Powered DC Pump Features:

  • Motor: brushless motor is inside
  • Life span: can sustain 24 hours continuous running. And life span is more than 25,000 hours
  • Low noise: noise lower than 40dB
  • Max working temperature : can pump 100℃ hot water/li>
  • 0~5V voltage, PWM speed adjustable

    • Submersible Pump Application:

  • Out door Solar water heater
  • Solar farm irrigation
  • Agricultural spray.
  • water circulation system
  • Hot water recirculating system
    • ■ Specifications
    1 Max Flow Rate 27L/MIN,40L/MIN
    2 Max Static Lift 4M,8M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature 0°-100°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 24W,86.4W
    15 Noise Class form 1M 35dB /(A)
    16 Ideal Life Time 30,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet Φ20mm (1/2 inch thread)
    19 OD of Outlet Φ20mm (1/2 inch thread)
    20 Dimension 95.1*103*64.7mm
    21 Weight 0.650kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 2 4 27 24 ≤35
    24 12~30 3.6 8.0 40 86.4 ≤55

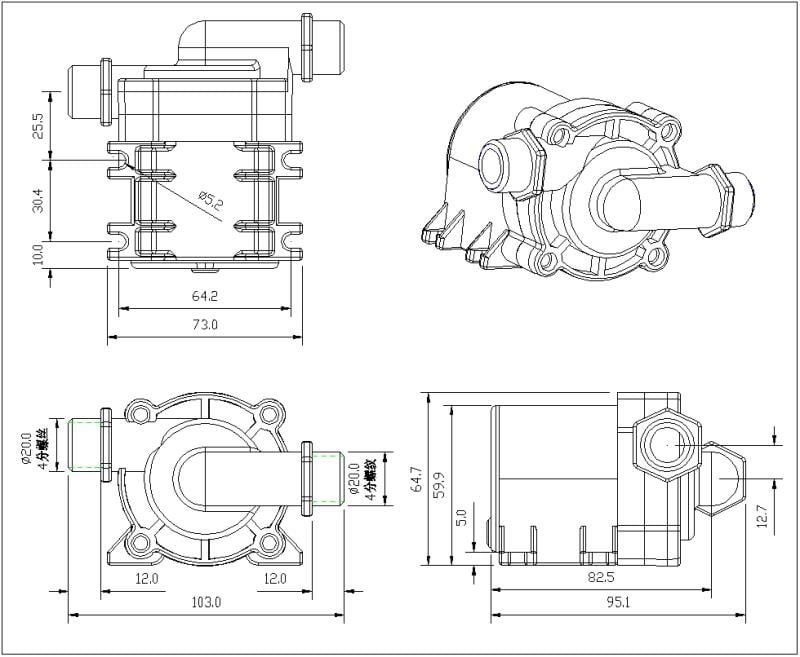

    ■ Curve & Dimension

    solar water heater pumps vp40s size
