Solar Water Circulation Pump VP40N

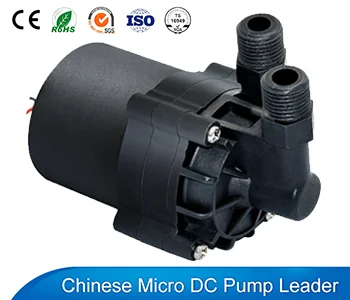

solar water circulation pumps vp40n

Solar Water Circulation Pump VP40N is a small solar water heater pump driven by a dc brushless motor. It is commonly used for solar water circulation system,water heater etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

1.9M, 8M
Max Flow

330L/H, 600L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

,

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Solar Water Circulation Pump VP40N is a small solar hot water booster pump. It is made by PPE material that can endure high working fluid temperature. VP40N has high working efficiency since it used a bldc motor in side the pump. Special designed a unique inlet and outlet structure that we can use it as a hot water recirculating pump. People commonly use VP40N for solar water circulation system, water heater and pipeline water booster etc.

    Solar Water Circulation Pump Features:

  • Driven method: VP40N used BLDC motor driving technology
  • High efficiency: DC brushless motor with long life span
  • Low noise : Ultra quiet noise lower than 35dB
  • Max working temperature : VP40 can work with as high as 100℃ temperature fluid.
  • IP protection level: IP32
  • Fluids: It can pump pure Water and Antifreeze
  • Special function: Locked-rotor protection, Dry-running protection, Blocked-Protection

    • Water Booster Pump VP40N Application:

  • Solar water heater
  • Air source water heater
  •  Pipeline booster.
  • Separated water heater
  • Hot pump air conditioner
  • Air energy water heater
  • Other Water circulation

    • solar water circulation pump vp40n application

    ■ Specifications
    1 Max Flow Rate 5.5L/MIN,10L/MIN
    2 Max Static Lift 1.9M,8M
    3 Rated Voltage 12V,24v
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-100°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature 0°-70°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP32
    12 Use Place Indoor
    13 Working Voltage Range 8V-20V,12V-30V
    14 Power Consumption 5W,29W
    15 Noise Class form 1M 35dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet 1/4 inch
    19 OD of Outlet 1/4 inch
    20 Dimension 84.1*46*47mm
    21 Weight 0.22 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.4 1.9 5.5 5 ≤35
    24 12~30 1.2 8.0 10 29 ≤40
    ■ Curve & Dimension

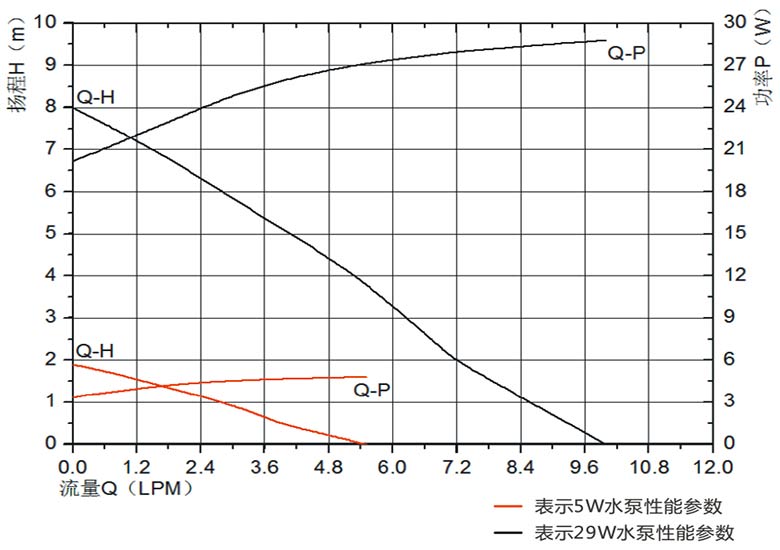

    solar water circulation pump p4521 flow

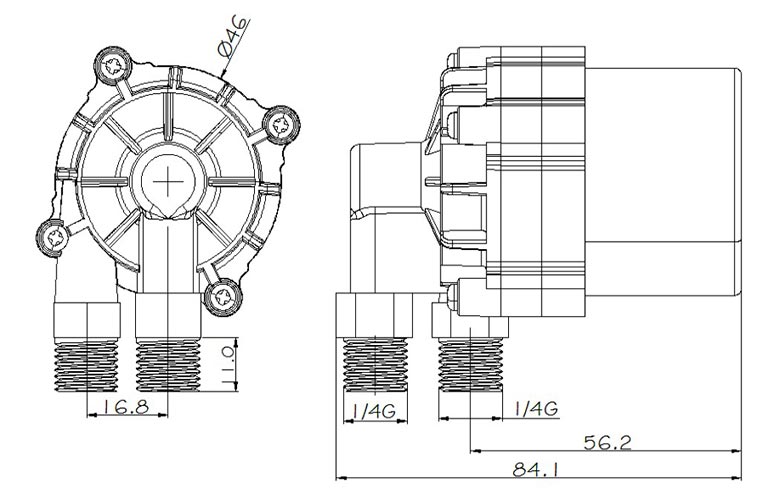

    solar water circulation pump p4521 size
