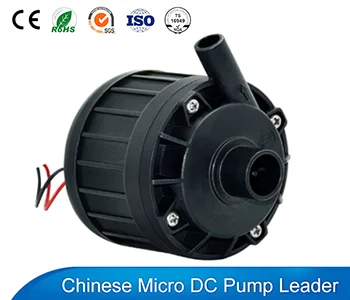

Super Silent Water Pump VP60C

super silent water pump vp60c

Super silent water pump VP60C is a 12v quiet pump with working noise low to 23dB. As a circulation pump, it is hot saled in korea hot water mattress market.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

Max Head

1.5M, 2.2M
Max Flow

420L/H, 480L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Super Silent Water Pump VP60C is a high quality made 12V quiet water pump. It is one of the unique product of our company that just with 23dB running noise. People can widely use it in circulating systems for homes. Such as hot water mattress, floor heating system, boiler, etc. Driven by a bldc motor it has many advantages when compared with brushled dc silent water pump and AC pumps. Such as life span with more than 25000 hours, high efficiency. As a high performance quiet hot water recirculating pump that especialy designed for hot water circulation in water mattress. Here, Highly recommend this super silent water pump to customer use it in hot water mattress, plumbing water mattress. since it is hot saled in Korea hot water mattress market.

    Super Silent Water Pump Application:

  • Driven method: VP60C Pump use advanced Brushless dc Motor driving technology inside.
  • Long woking Life span: VP60C Pump can work for more than 20,000 hours .
  • Working Fluids: It can pump Water, Antifreeze,oil, provide acid and alkali solution
  • Speed control way: PWM and 0~5v voltage speed control function [optional].
  • IP protection level: IP32.
  • Special function: Power wire reversely connect protection, Blocked protection, Locked-rotor protection, Dry-running protection.

    • Super Quiet Pump VP60C Application:

    Super Silent Water Pump VP60C is a small quiet water pump used for pumping coolant and water. Suitable for the below applications:

  • hot water mattress circulation, plumbing water mattress
  • Floor heating system
  • boiler
  • Other hot water recirculating system
    • ■ Specifications
    1 Max Flow Rate 8L/Min,7L/Min
    2 Max Static Lift 2.2M/1.5M
    3 Rated Voltage 12V/12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Water/Oil/Antifreeze
    11 Waterproof Class IP55/IP68
    12 Use Place Outdoor/Indoor
    13 Working Voltage Range 8-20V,8V-20V
    14 Power Consumption 4~5W
    15 Noise Class form 1M 23dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet ∅17.0
    19 OD of Outlet ∅10
    20 Dimension 57.5*62*67.25mm
    21 Weight 0.16kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 8~20 0.33 1.5 7 4 ≤23
    12 8~20 0.45 2.2 8 5.4 ≤25
    ■ Curve & Dimension

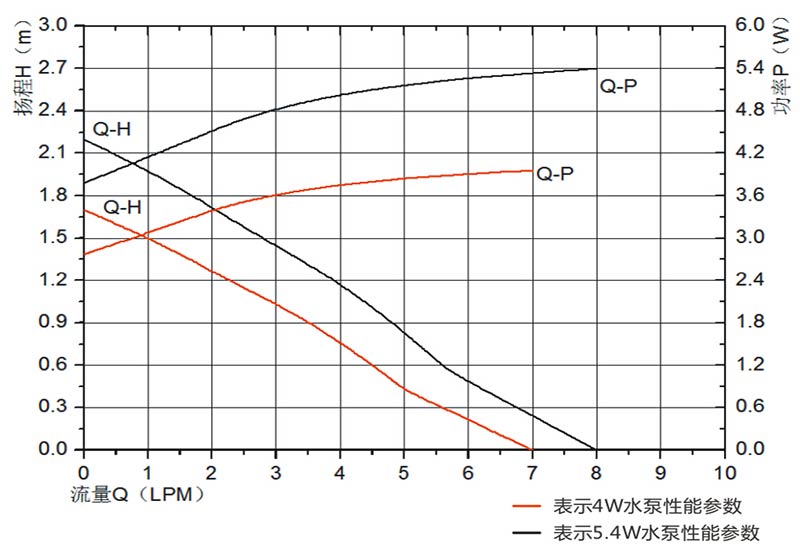

    super silent water pump vp60c flow

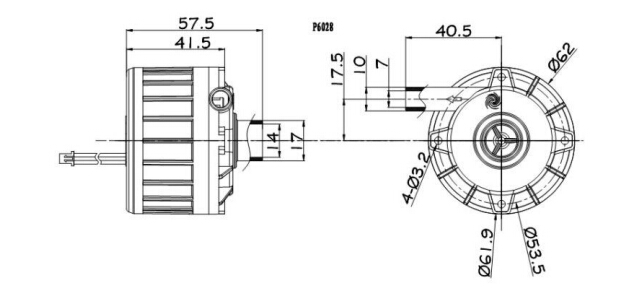

    super silent water pump vp60c size
