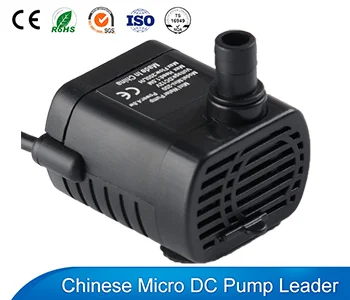

Tabletop Water Fountain Pump VP30

tabletop water fountain pump

Tabletop water fountain pump VP30 is a battery operated water pump . It is widely used for aquarium, tabletop fountains, and hydroponic systems, etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

5V,12V
Max Head

0.7M, 1.5M
Max Flow

120L/H,204L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Tabletop water fountain pump VP30 is a battery operated water pump, built by a high efficiency 6v, 9v or 12V bldc motor. It is designed for long life span, low power consumption and ultra-silent operation to provide years of service. It is perfect for applying in aquarium, tabletop fountains, and hydroponic systems, etc. Tabletop water fountain pump VP30 is a good choice for you to use it in your product or circulation systems, if you are finding a small water circulation pump with needs on lower voltage, power consumption, lower noise.

    Tabletop water Fountain Pump Features:

  • Motor type: DC brushless motor
  • Duty work: 24 hours continuous running
  • Long life span: More than 30000 hours
  • Low working noise: Its Working noise lower than 30dB
  • Low or no maintenance

    • Tabletop water Fountain Pump Application:

  • indoor/outdoor fountains
  • spout and hydroponic systems
  • waterfall for your garden
  • Tabletop Fountain
  • Other Water circulation
    • ■ Specifications
    1 Max Flow Rate 2L/MIN,3.4L/MIN
    2 Max Static Lift 0.7M,1.5M
    3 Rated Voltage 5V,12v
    4 Impeller Type Open impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-60°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -10°-60°C
    10 Media Pure Water/Antifreeze
    11 Waterproof Class IP68
    12 Use Place Indoor/outdoor
    13 Working Voltage Range 4V-9V,8V-14V
    14 Power Consumption 1W,4.8W
    15 Noise Class form 1M 30dB /(A)
    16 Life Span >30,000 Hours
    17 Working Mode Continuous
    18 Inlet OD 8mm
    19 Outlet OD 8mm
    20 Dimension 43.3mm*38mm*44.6mm
    21 Weight 0.060 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    5 4~9 0.2 0.7 2 1 ≤30
    9 8~14 0.2 1.2 2.7 1.8 ≤30
    12 8~14 0.4 1.5 3.4 4.8 ≤30

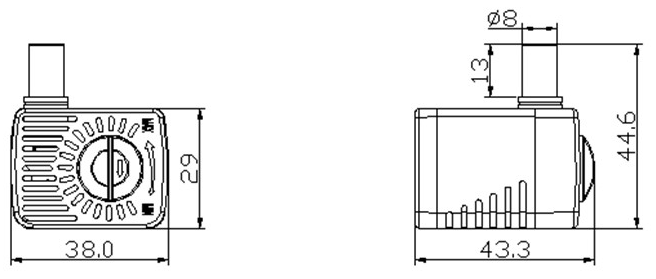

    ■ Curve & Dimension

    Tabletop Water Fountain Pump VP30 size
