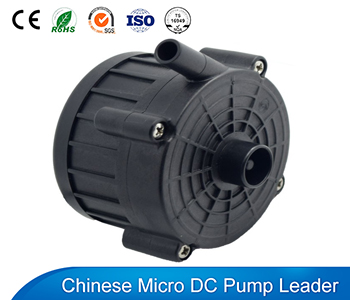

Ultra Quiet Water Pump VP70A

cpu cooler pumps vp70a

Ultra Quiet Water Pump VP70A is a 12v dc water pump made by PPE material. It is widely used in water circulation system such as hot water mattress, small boiler , CPU cooling etc.

Product Parameters:

 We also provide customized service. Learn OEM Solution.

Additional information

Rated Voltage

,

Max Head

2.2M, 2M
Max Flow

540L/H, 480L/H
Inlet Diameter

Outlet Diameter

Dimensions

Liquid Temperature

Noise

Ask for a Quote
  • Overview
  • Specifications
  • Parameter
  • Curve & Dimension
  • Related products
    •
    ■ Overview

    Ultra Quiet Water Pump VP70A is a high quality made 12v dc quiet water pump. As a hot water recirculating pump, people widely use it in hot water circulation system. Such as hot water mattress, small boiler, CPU cooling etc. It can pump coolant, pure water common fluids. VP70A Ultra Quiet Water Pump is a good choice for using in hot water recirculating system that with quiet needs, due to it’s long life span and perfect performance.

    Ultra Quiet Water Pump Application:

    Ultra Quiet Water Pump VP70A is a silent dc water pump which with working noise lower than 25dB test from 1 meter distance. People can widely use it for coolant and water circulation. It is suitable for applying in:

  • Plumbing mattress water circulation
  • Floor heating circulation system
  • PC water circulation
  • Other hot water recirculating system
    • ■ Specifications
    1 Max Flow Rate 8L/Min,9L/Min
    2 Max Static Lift 2M/2.2M
    3 Rated Voltage 8V/12V
    4 Impeller Type Closed impeller
    5 Food Grade(Y/N) N
    6 Liquid Temperature 0°-70°C
    7 Pump Theory Centrifugal pump
    8 Motor Type BLDC motor
    9 Ambient Temperature -25°-70°C
    10 Media Water/Ail/Antifreeze/
    11 Waterproof Class IP55/IP68
    12 Use Place Outdoor/Indoor
    13 Working Voltage Range 6-10V,8V-13V
    14 Power Consumption 6~7W
    15 Noise Class form 1M 25dB /(A)
    16 Ideal Life Time 20,000 Hours
    17 Working Mode Continuous
    18 OD of Inlet ∅17.0±0.2mm
    19 OD of Outlet ∅9.8±0.2mm
    20 Dimension Can be customized
    21 Weight 0.24 kg
    22 Power Supply DC power supply, battery, solar powered
    23 Remarks Not Self-priming
    ■ Parameter
    Rated Voltage(VDC) Opearting Voltage(VDC) Rated Current(A) Max Head(M) Max Flow(L/Min) Power(W) Noise(dB)
    12 6~10 0.9 2.2 9 7 ≤26
    24 8~13 0.5 2 8 6 ≤25
    ■ Curve & Dimension

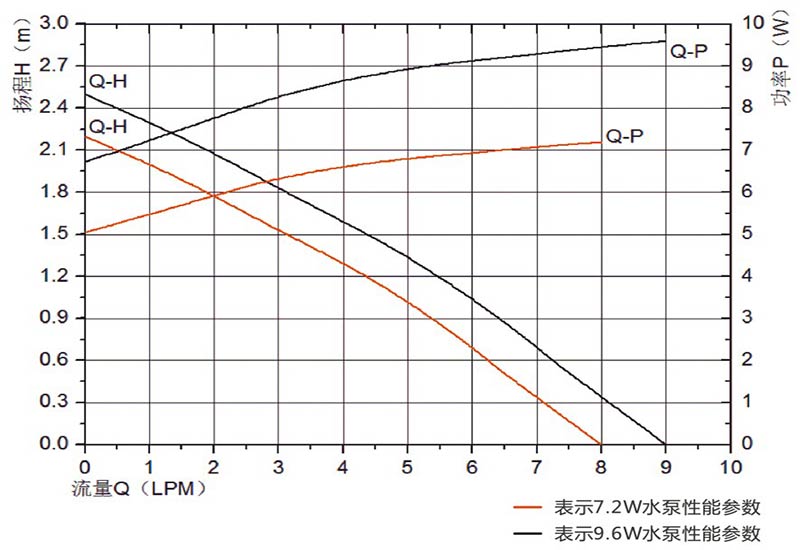

    cpu cooler pump vp70a flow

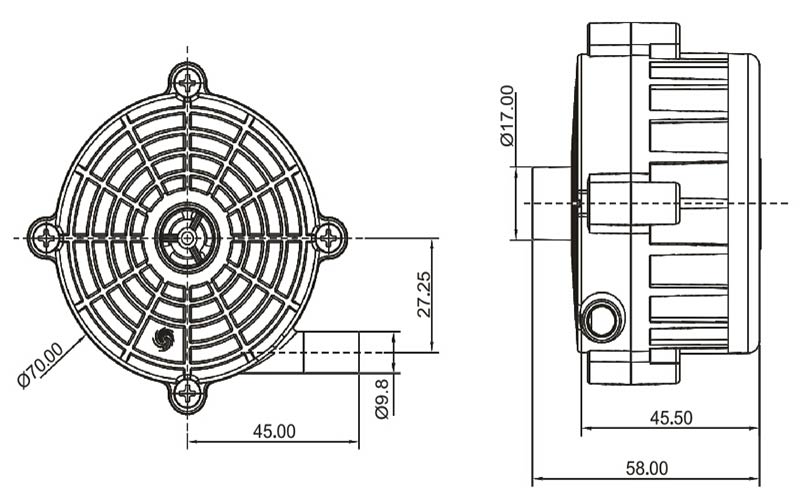

    cpu cooler pump vp70a size
